Wrist splint AM-OSN-U-01/CCA

splintwrist orthosiswrist brace

Overview
Wrist joint has a large range of motion (flexion, extension, radial and ulnar deviation; pronation and supination in radioulnar joints). Fall onto an outstretched hand (FOOSH) is a common mechanism for wrist injuries where distal radial and scaphoid fractures are frequent. Stable scaphoid fracture requires immobilization for approximately 8 weeks. The wrist brace AM-OSN-U-01/CCA with CCA system is intended for these cases and for active users and athletes at risk of falls.

Product description

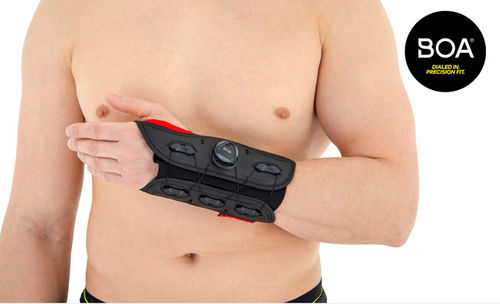

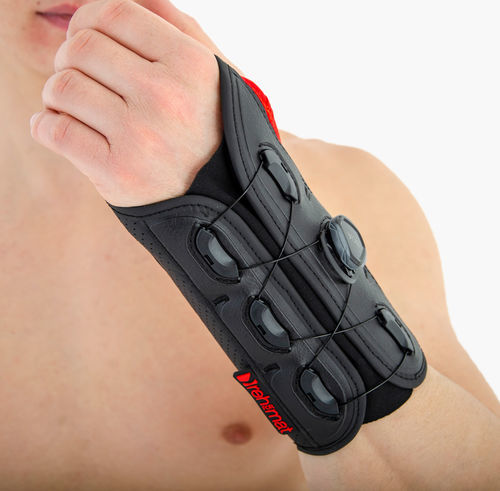

The wrist brace combines durable, breathable textiles with eco-leather covering. The construction uses a single-piece wrist element to minimize seams and improve comfort. An anatomically shaped palm splint is made of high-quality aluminum and covered with nylon and eco-leather. Two dorsal orthopedic splints, also covered with nylon and eco-leather, provide dorsal support. The brace integrates the BOA® Fit System — polyamide grommets, steel wires coated in plastic and a dial knob — enabling micro-adjustable compression and secure fitting. Adjust by turning the dial clockwise to tighten and counter-clockwise to release.

Key features

• Anatomically shaped aluminum palm splint (nylon and eco-leather cover)
• Two dorsal orthopedic splints (nylon and eco-leather cover)
• Durable, breathable fabric construction with reduced seams for improved comfort
• BOA® Fit System for micro-adjustable, secure fitting (operable with heavy gloves)
• Designed as a cast replacement; breathable, skin-friendly, latex-free materials
• CTSyndrome pad on the wrist splint to reduce carpal canal pressure

Purpose of use

• Wrist instability
• Immobilization after wrist injuries (fracture, dislocation)
• Prophylactic use in sport

Sizes
Size | Wrist circumference | How to measure
S | 13-15 cm (5.1-5.9 in) | See wrist circumference diagram
M | 15-17 cm (6.1-6.7 in) | See wrist circumference diagram
L | 17-19 cm (6.9-7.5 in) | See wrist circumference diagram
XL | 19-21 cm (7.7-8.3 in) | See wrist circumference diagram
Total product height: 21 cm (8.3 in). Left/right versions available.

Materials
AirSanmed II™ multi-layer orthopedic textile: external washable vapor barrier (perforated, laminated with off-loading foam), comfort foam, breathable cotton inner layer (pH neutral, Oeko-Tex Standard 100 certified). Materials reduce pressure from aluminum stays and splints and enhance user comfort.

ALLOWABLE DISINFECTANTS
Type of active agent or surfactant | Maximum content in disinfectant | Notes
2-propane | 35% | Spray, leave to act, then wash and dry the device
1-propane | 25% | Spray, leave to act, then wash and dry the device
Ethanol | 10% | Spray, leave to act, then wash and dry the device
Alkyl Dimethyl Benzyl Ammonium Chloride | 0.2% | Spray, leave to act, then wash and dry the device
Glucoprotamine | 25% | Spray, leave to act, then wash and dry the device

Technologies & systems

• BOA® Fit System — micro-adjustable dial-and-lace system for precision fit and durability; dial and laces guaranteed for the product lifetime
• CTSyndrome — pad on the wrist splint reducing carpal canal pressure to protect the median nerve

Stiffenings

• Palm strip: anatomically shaped aluminum strip covered by nylon and eco-leather
• Plastic stays: water-, moisture- and sweat-resistant plastic stays with one-directional stiffness and memory function

Setting up / Additional info
BOA® Fit System operation: turn dial clockwise to tighten to required compression; turn counter-clockwise to the audible click to loosen. Product supplied in left and right versions. Intended as a Class I medical device.

Technical specifications

• Code: AM-OSN-U-01/CCA
• Model: AM-OSN-U-01/CCA
• Trade name: UPPER-EXTREMITY SUPPORT
• Brand: 4sport
• Total product height: 21 cm (8.3 in)
• Sizes: S (13-15 cm), M (15-17 cm), L (17-19 cm), XL (19-21 cm) wrist circumference
• Main materials: AirSanmed II™ textile, aluminum palm splint (nylon + eco-leather cover), nylon/eco-leather dorsal splints
• Fitting system: BOA® Fit System (dial, steel wires, polyamide grommets)
• CTSyndrome pad: reduces carpal canal pressure
• Device class: Class I medical device
