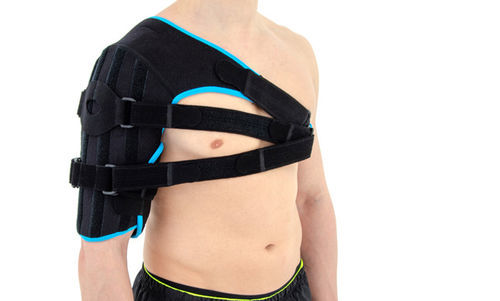

Arm sling AM-BX-01

Product overview
AM-BX-01 is a modular shoulder and upper-extremity orthosis for conservative treatment of proximal and mid-shaft humerus fractures. It provides traction-based immobilization to maintain alignment of bone fragments and reduces risk of pseudoarthrosis. The design fits either left or right arm and both forearms.

Key product description
AM-BX-01 offers three degrees of shoulder and arm stabilization using traction: the humerus hangs along the torso so its weight generates continuous traction. The orthosis includes removable spiral bonings placed in eight pockets for progressive stabilization adjustment. Soft, non-rigid fabrics adapt to muscle tension and allow circumference increase during contraction. A wraparound arm strap is supplied as a separate element for precise circumferential fit, plus an additional Velcro strap to adjust arm abduction/adduction smoothly.

Purpose of use

• Humerus fractures (proximal and mid-shaft)
• Humerus contusions
• Pseudoarthrosis prevention and treatment
• Postoperative immobilization
• Rotator cuff injuries
• Shoulder dislocations
• Adhesive capsulitis (frozen shoulder)
• SLAP lesions

Sizes (circumference around head of humerus and armpit)
Universal: min 90 cm – max 110 cm (min 27.6" – max 43.3") — See measurement image in product documentation.
X-Size: min 110 cm – max 140 cm (min 35.4" – max 55.1") — See measurement image in product documentation.

Sizes (length of the arm element)
Universal: 30 cm (11.8").
X-Size: 34 cm (13.4").
Fits both forearms.

Materials and technology

• ActivePren™: three-layer elastic material with neoprene core and elastic jersey covers; soft, flexible, designed for effective stabilization without heavy imprinting on skin.
• AeroSpace II™: distance-elastic 3D knit with polyester reinforcement and spandex for flexibility; lightweight, ventilated structure with external self-gripping layer for easy adjustment.
• UniPren™: universal three-layer material with self-gripping polyamide outer layer, neoprene foam core and elastic jersey inner layer for comfortable, adhesive fit.
• Flat aluminum stays: special alloy for stiffness at low weight; rounded ends; available pre-profiled or flat for individual shaping.
• Spiral boning: coiled flat wire with shape memory, galvanically protected against corrosion; removable and placed in 8 pockets for multidirectional stabilization.

Additional product features

• Traction-based stabilization to assist fragment alignment and healing.
• Modular design providing three stabilization levels.
• Removable spiral bonings for adjustable support.
• Wraparound arm strap and extra Velcro for precise circumferential and abduction/adduction adjustment.
• Symmetrical design — fits both left and right arms.
• Class I medical device.

Technical specifications

• Code: AM-BX-01
• Trade name: UPPER-EXTREMITY SUPPORT
• Model: AM-BX-01
• Intended use: immobilization and treatment of humerus injuries and related shoulder conditions (see Purpose of use)
• Stabilization levels: 3 degrees (I, II, III)
• Materials: ActivePren™, AeroSpace II™, UniPren™
• Stiffening: removable spiral bonings (8 pockets); flat aluminum stays available
• Sizes (circumference): Universal 90–110 cm; X-Size 110–140 cm
• Arm element length: Universal 30 cm; X-Size 34 cm
• Fits: both forearms and both left/right arms
• Medical device classification: Class I
