Orthopedic surgery elbow support T-RANGE

arm surgeryhand surgeryorthopedic

Description

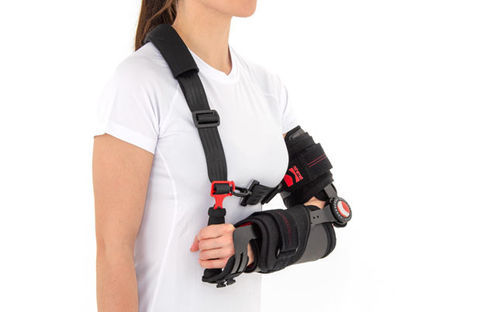

T-Range is a single‑axis telescopic elbow orthosis designed to control and limit elbow range of motion with an adjustable hand grip. Length is adjusted via a maintenance‑free press‑slide system. The device stabilizes the elbow after fractures, dislocations, strains or surgical procedures while providing anatomical fit through elastic plastic caps and soft removable inner sleeves.

Key features / Highlights

• 1‑axial telescopic splint with press‑slide length regulation
• Hand grip covered with skin‑friendly foam to limit pronation/supination
• Elastic plastic caps shaped to forearm and arm anatomy
• Soft detachable sleeves under caps; universal sleeve length
• Straps with karabiner for easy donning; adjustable strap length for precise fit
• Durable, latex‑free, skin‑friendly materials
• Class I medical device

Purpose of use

• Fractures of distal humerus, elbow and proximal forearm
• Post‑operative elbow support
• Tendon and ligament injuries or repairs
• Chronic elbow conditions
• Collateral ligament reconstruction
• Elbow hyperextension control
• Biceps and triceps tendon repairs

Sizes
Size: Single size
Length from lateral epicondyle to wrist: min 23 cm – max 32 cm (min 9.1" – max 12.6")
Arm circumference (6 cm above elbow center, A): min 22 cm – max 44 cm (min 8.7" – max 17.3")
Forearm circumference (6 cm below elbow center, B): min 22 cm – max 36 cm (min 8.7" – max 14.2")
Total product length: min 49 cm (19.3") – max 60 cm (23.6")
Left and right side available.

Materials

• Active3D™ – thermoformed closed‑cell foam fabric; waterproof, non‑absorbent, easy to clean; external self‑gripping layers; thermoformable for shaping around splints and stays.
• ActiveSpace™ – 3D spacer polyamide lamination for high skin ventilation, lightweight, non‑elastic for improved stabilization, waterproof and moisture‑minimizing.
• SoftComfort™ – soft comfort foam laminated with delicate cover knit for contact with sensitive skin; Oeko‑Tex Standard 100 and REACH compliant; perforated for breathability; used for liners and relief pads.

Technological systems & stiffenings

• Press‑slide System – maintenance‑free length adjuster for splints (fiberglass‑reinforced plastic) with push‑button extension/shortening; designed for low weight and compact dimensions.
• Splint 1RE – single‑axis orthopedic splints allowing ROM adjustment in 15° increments; hyperextension settings (-15° and -30°); lateral stabilization; tool‑free angle setup with safety lock; aluminium alloy and plastic with carbon fiber components; patented design.
• Upper limb stabilization system – splints with drop lock to regulate elbow ROM and adjustable hand grip; adjustable forearm and shoulder supports; Velcro straps for installation of soft 3D relief pads.
• Paddings (3D supports) – anatomical foam/EVA pads connected to skin‑friendly materials to relieve rigid elements and protect the skin.

Gallery & additional product imagery
Multiple photographic views are available showing telescopic function, hand grip, straps with karabiner and splint components.

Technical specifications

• Brand: 4sport
• Trade name: ELBOW ORTHOSIS
• Model / Code: T-RANGE
• Product code: T-RANGE
• Medical device classification: Class I medical device
• Universal size (single size) with broad circumference adjustment ranges
• Total length adjustable from approx. 49 cm to 60 cm
• Materials: Active3D™, ActiveSpace™, SoftComfort™
• Technologies: Press‑slide length adjustment; Splint 1RE (dial joint) for ROM and hyperextension control
• Features: hand grip to limit pronation/supination; straps with karabiner; durable, latex‑free, skin‑friendly
