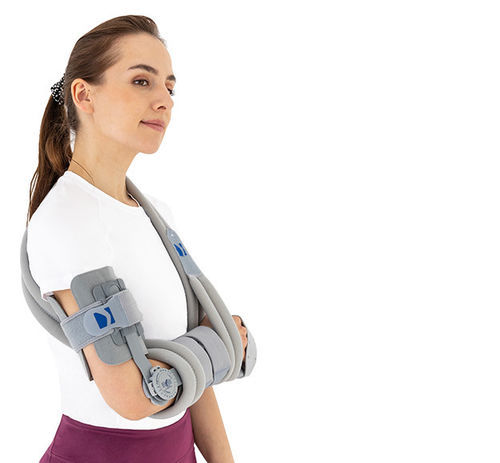

Shoulder orthosis AM-KG-AM/1RE

articulated

Product description
Elbow ROM brace AM-KG-AM/1RE provides comprehensive stabilization of the upper limb, covering elbow, wrist, carpus, metacarpus and phalangeal joints. It integrates Splint Mod. 1RE (single-axis) with tool-free range of motion adjustment in 15° increments and secured hyperextension stops at -15° and -30°. A safety system prevents unauthorized angle changes.

Materials / Padding / Cover
The orthosis uses skin-friendly Active3D™ (thermoformed closed-cell foam) and UniComfort™ two-layer lamination for comfortable fit. Splint components are aluminium alloy and plastic reinforced with carbon fibre to resist sweat and ensure hinge function. 3D relief pads (foam/EVA) reduce pressure from rigid elements.

Technology / Splint details
Splint Mod. 1RE is a patented single-axis orthopedic hinge allowing repeatable angle setting every 15° without tools. Hyperextension is secured at -15° and -30°. The press-slide length adjuster (fiberglass-reinforced plastic) includes a scale for reproducible positioning. Components are light and sweat-neutral to maintain long-term function.

Accessories & optional equipment
Standard fingers separator and an arm sling with shoulder pad are included. On request, the standard separator can be replaced by a neurological fingers separator (individual finger stabilization). Compatible accessories: protective sleeve and neurological separator.

Indications

• Elbow instabilities
• Medial or lateral epicondyle fractures
• Postoperative care after prosthesis implantation
• Postoperative care of elbow ligament instabilities
• Conservative treatment of elbow dislocation including wrist
• Contractures with or without radial/ulnar involvement
• Rheumatoid arthritis
• Rehabilitation phase
• Central or peripheral neurological injuries

Sizes / Measurement
Size: Single size.
Length from lateral humeral epicondyle to wrist: min 17 cm – max 31 cm (min 6.7" – max 12.2").
Arm circumference 6 cm above elbow center (A): min 22 cm – max 44 cm (min 8.7" – max 17.3").
Forearm circumference 6 cm below elbow center (B): min 22 cm – max 36 cm (min 8.7" – max 14.2").
Available for left or right side. Total product length: 67 cm (26.4").

Notes
Class I medical device. Use according to the instructions for use or labelling.

Technical specifications

• Model / Code: AM-KG-AM/1RE
• Trade name: UPPER-EXTREMITY SUPPORT
• Brand: 4medic
• Splint type: Splint Mod. 1RE, single-axis, tool-free ROM adjustment in 15° increments, hyperextension -15° and -30°
• Splint materials: aluminium alloy, plastic reinforced with carbon fibre
• Main materials: Active3D™ (thermoformed closed-cell), UniComfort™ lamination
• Paddings: 3D relief supports (foam / EVA foam)
• Fastening / adjustment: Velcro straps, polyethylene buckles, press-slide length adjuster
• Included accessories: fingers separator (standard), arm sling with shoulder pad
• Sizing: single size; length 17–31 cm (lateral epicondyle to wrist); total product length 67 cm
• Indications: elbow instabilities, fractures, postoperative care, dislocations, contractures, rheumatoid arthritis, rehabilitation, neurological injuries
• Medical class: Class I medical device (per EU Regulation)
