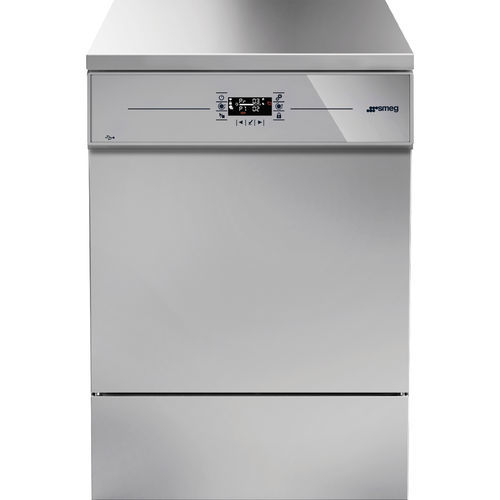

Automatic glassware washer GWF06-00-00J

laboratorywater-based detergentwater

Product overview
Smeg glassware washer GWF06-00-00J for life science, small laboratories and agro-food applications. Compact 60 cm unit with modular loading system and optimized hydraulic circuit for effective washing of bottles, flasks, pipettes, vials and mixed loads. Undercounter installation possible.

Highlights

• Modular loading: Interchangeable modules configure the wash chamber according to shape and size (bottles, flasks, pipettes, vials), enabling mixed loads and optimized space use.
• Optimized hydraulics: Increased flow rate and targeted pressure with angled nozzles on the lower spray arm for improved reach into complex glassware geometries.
• FlexiLoad two-level system: Two identical, fully reconfigurable levels; upper rack adjustable to two heights to accept different glassware sizes without extra trolleys.
• Undercounter-ready: Designed for installation under counters to save laboratory bench space.

Features / Functional description

• Type: Glassware washer 60 cm.
• Working temperature: Up to 85 °C.
• Washing levels: Up to 2 levels (FlexiLoad).
• Door: 1 stainless-steel drop-down door.
• Modular system: All modules interchangeable and positionable left/right on lower and upper levels.
• Undercounter installation: Yes.
• Control: Electronic control with display, alarm indicator, remaining duration display, end-of-cycle indicator, cycle archive and USB cycle download.

Also available

• GWF06-S0-00J - version with second dosing pump for liquid detergent.

Technical specifications

• Brand: Smeg
• Model: GWF06-00-00J
• Type: Glassware washer 60 cm
• Working temperature: Up to 85 °C
• Washing levels: till 2
• Upper level reconfigurable at two different heights: Yes
• Door: 1 stainless-steel drop-down door
• External material of the machine: AISI 304
• Washer chamber material: AISI 304
• Chamber capacity (net volume): 152 l
• Chamber with rails: Yes
• Product dimensions WxDxH (mm): 600x605x850
• Programs: Standard programs stored: 7
• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using ad hoc optional kit (WD-EC-1)
• Convertible in tri-phase without neutral: Yes, using ad hoc optional kit (WD-EC-3)
• 60 Hz possibility: Yes, on demand
• Hydraulic: Optimized hydraulic circuit with targeted pressure and increased flow rate
• Cold water connection: Yes
• Demi (demineralized) water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional
• Powder detergent entrance: Yes
• Peristaltic pump for dosing liquid neutraliser: Yes
• Peristaltic pump for dosing liquid detergent: Optional
• Detergent level sensor: Optional
• Water softener: Yes
• Acqua Stop: Optional
• Modular system for high loading flexibility: Yes
• Undercounter installation: Yes
• Electronic control / Interface: Electronic control with alarm indicator on display, remaining duration display, end of cycle indicator, cycle archive and USB download
