Automatic glassware washer GWF26-00-000

for the pharmaceutical industrylaboratorywater

Product overview

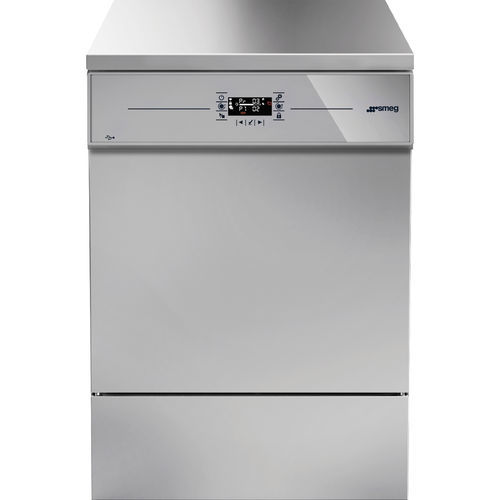

Smeg Glassware washer GWF26-00-000 is a professional undercounter machine designed for laboratory, pharmaceutical and healthcare environments. The unit combines a configurable modular loading system with stainless-steel construction suitable for routine glassware cleaning and process traceability.

Highlights
Flexible interchangeable modules let you configure the wash chamber for bottles, flasks, pipettes, vials and mixed loads, optimizing space and handling. Modules can be positioned left or right on each trolley and on upper or lower levels to adapt to different workflows.

Hydraulic circuit and washing performance
The optimized hydraulic circuit increases flow rate and concentrates pressure where needed by activating one or more washing levels/modules. The lower spray arm features angled nozzles to reach difficult areas and improve cleaning effectiveness across varied glassware geometries.

Capacity and loading
The usable chamber volume is designed for simultaneous washing of different sizes and shapes; 1000 ml bottles can be washed on both loading levels at once. The two identical levels include an upper level that is reconfigurable at two heights to support multiple loading configurations without additional trolleys or accessories.

Washing & drying
High-performance washing combined with an enhanced forced hot-air drying system provides a 50% increase in drying power, delivering glassware ready for immediate use with reduced residual moisture.

Features / Functional details

• Type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Washing levels: up to 2
• Upper level reconfigurable at two different heights
• Enhanced forced hot-air drying system: Yes
• HEPA filter: Optional
• Door: 1 stainless-steel drop-down door
• Modular system for high loading flexibility: Yes
• Undercounter installation: Yes
• Electronic control: Yes (alarm on display; remaining duration; end-of-cycle indicator)
• Traceability: Last 100 executed programs; Cycle Archive: Yes; Download cycle: Optional via LAN / Yes with USB pen drive
• Standard programs stored: 20; Modifiable programs: 20; Program editing: Yes
• Electrical connection: 3N AC 400V - 50Hz; Monophase conversion: Yes with optional kit (WD-EC-1); Convertible to tri-phase w/o neutral: Yes with optional kit (WD-EC-3); 60 Hz: Yes, on demand; Plug: Not present
• Hydraulic: Optimized hydraulic circuit with targeted pressure and increased flow rate; Cold water connection: Yes; Hot water connection: Optional (T4260AC); Demi water connection: Yes; Drain pump: Yes; Booster pump for demineralized water: Optional
• Construction: External material AISI 304; Washer chamber material AISI 316L; Chamber net volume: 152 l; Chamber with rails: Yes
• Equipments: Powder detergent entrance: Yes; Peristaltic pump for dosing liquid neutraliser: Yes; Peristaltic pump for dosing liquid detergent: Optional; Peristaltic pump for caustic soda: Optional; Peristaltic pump for defoamer: Optional; Possibility to install additional peristaltic pumps: Yes, up to 1; Chemicals dosing: Optional; Detergent level sensor: Optional; Water softener: Yes; Acqua Stop: Optional; Probe passage hole for validation: Yes
• Also available versions: GWF26-S0-000 (second dosing pump for liquid detergent); GWF26-0C-000 (integrated steam condenser)
• Product dimensions WxDxH (mm): 600 x 605 x 850

Notes
All modules are interchangeable and can be positioned on both loading levels. The product is intended for professional, healthcare and laboratory sectors (Life science: Laboratory; Pharmaceutical; Agro-food). Smeg design and service apply.

Technical specifications

• Model series: GWF26 series
• Product type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Washing levels: up to 2 (flexible activation)
• Upper level: Reconfigurable at two heights
• Drying: Enhanced forced hot-air drying (50% boost)
• HEPA filter: Optional
• Door: 1 stainless-steel drop-down door
• Chamber material: AISI 316L
• External material: AISI 304
• Chamber net volume: 152 l
• Dimensions (WxDxH): 600 x 605 x 850 mm
• Electrical: 3N AC 400V - 50Hz (monophase/tri-phase conversion kits available)
• Hydraulic connections: Cold water yes; Hot water optional (T4260AC); Demi water yes; Drain pump yes; Booster pump optional
• Programs: 20 standard; 20 modifiable; program editing and traceability functions included
• Detergent dosing & accessories: powder detergent entrance; various peristaltic pumps (some optional); water softener included; optional detergent level sensor and Acqua Stop
• Interface: Electronic control with alarms, remaining time, end-of-cycle indicator; cycle download via LAN or USB (optional)
