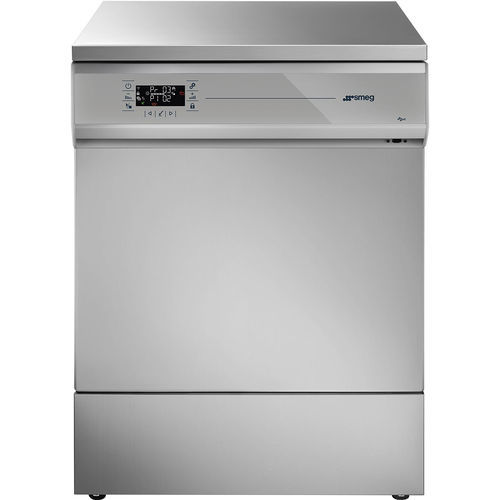

Glassware washer for the pharmaceutical industry GW1260-SC-000
laboratoryfor the food industrywater-based detergent

Glassware washer for the pharmaceutical industry - GW1260-SC-000 - SMEG Instruments - laboratory / for the food industry / water-based detergent
Glassware washer for the pharmaceutical industry - GW1260-SC-000 - SMEG Instruments - laboratory / for the food industry / water-based detergent
Glassware washer for the pharmaceutical industry - GW1260-SC-000 - SMEG Instruments - laboratory / for the food industry / water-based detergent - image - 2
Glassware washer for the pharmaceutical industry - GW1260-SC-000 - SMEG Instruments - laboratory / for the food industry / water-based detergent - image - 3
Glassware washer for the pharmaceutical industry - GW1260-SC-000 - SMEG Instruments - laboratory / for the food industry / water-based detergent - image - 4
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
for the pharmaceutical industry, laboratory, for the food industry
Technology
water-based detergent, water

Description

Overview
  • Glassware washer 60 cm designed by Smeg for laboratory and life-science sectors (Laboratory; Pharmaceutical; Agro-food; Small Laboratories).


Highlights - Color touch display
  • The color touch display enables simple and intuitive daily operation and provides a full range of information, including specific programs for every need.
  • ECO program available to activate a washing cycle with lower water and energy impact than traditional cycles.


Data recording
  • USB input for convenient and efficient laboratory data recording.
  • Immediate connection to PC via software for diagnostics, cycle customization and timely data analysis.


Programs
  • Standard programs stored: 20
  • Modifiable programs: 20
  • Program editing: Yes


Technical Features
  • Working temperature: Up to 95 °C
  • Washing levels: till 2
  • Undercounter installation: Yes


Door and Chamber
  • Door: 1 stainless-steel drop-down door
  • Washer chamber material: AISI 316L
  • Chamber with rails: Yes


Electrical connection
  • Electrical connection: 3N AC 400V - 50Hz
  • Monophase conversion: Yes, using ad hoc optional kit (WD-EC-1)
  • Convertible in tri-phase without neutral: Yes, using ad hoc optional kit (WD-EC-3)
  • 60 Hz possibility: Yes, on demand
  • Plug: Not present


Hydraulic connection
  • Cold water connection: Yes
  • Hot water connection: Optional (T4260AC)
  • Demi water connection: Yes
  • Drain pump: Yes
  • Booster pump for demineralized water: Optional


Interface and Traceability
  • Electronic control: Yes
  • Alarm indicator: Yes, on the display
  • Remaining duration display: Yes
  • End of cycle indicator: Yes
  • Traceability: Last 300 executed programs
  • Cycle Archive: Yes
  • Download cycle: Optional through LAN connection / Yes with USB pen drive


Construction and Materials
  • External material of the machine: AISI 304
  • Washer chamber material: AISI 316L


Equipments and Options
  • Peristaltic pump for dosing the liquid neutraliser: Yes
  • Peristaltic pump for dosing the liquid detergent: Yes
  • Peristaltic pump for caustic soda: Optional
  • Peristaltic pump for defoamer: Optional
  • Possibility to install additional peristaltic pumps: Yes, up to 1
  • Chemicals dosing: Optional
  • Detergent level sensor: Optional
  • Steam condenser: Yes
  • Water softener: Yes
  • Acqua Stop: Optional
  • Probe passage hole for validation: Optional


Logistic Information
  • Product dimensions W x D x H (mm): 600 x 600 x 850


Target
  • Instruments Solutions: Life science
  • Life Science sector: Laboratory; Pharmaceutical; Agro-food; Small Laboratories


Technical specifications
  • Type: Glassware washer 60 cm
  • Working temperature: Up to 95 °C
  • Door: 1 stainless-steel drop-down door
  • Washer Chamber Material: AISI 316L
  • External material of the machine: AISI 304
  • Product dimensions (WxDxH mm): 600x600x850
  • Undercounter installation: Yes
  • Washing levels: till 2
  • Standard programs stored: 20
  • Modifiable programs: 20
  • Electrical connection: 3N AC 400V - 50Hz (monophase/tri-phase kits available)
  • Cold water connection: Yes; Hot water: Optional (T4260AC); Demi water: Yes
  • Drain pump: Yes; Booster pump for demineralized water: Optional
  • Electronic control and display alarms: Yes; Traceability: last 300 programs; Cycle archive: Yes
  • USB input: for data recording and PC connection
  • Peristaltic pumps: Neutraliser (Yes), Detergent (Yes), Caustic (Optional), Defoamer (Optional); Additional pumps: up to 1
  • Steam condenser: Yes; Water softener: Yes; Acqua Stop: Optional
