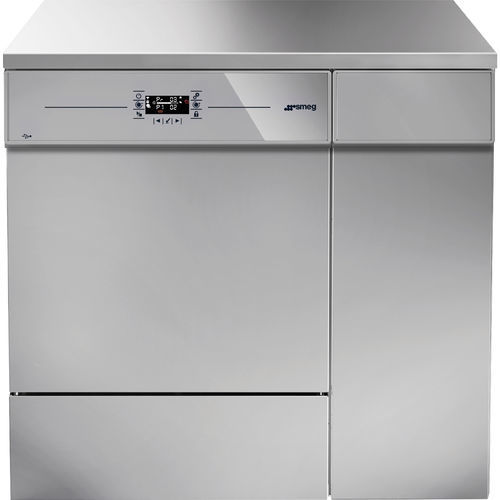

Laboratory glassware washer GWF29-00-000

for the pharmaceutical industryspraydry

Overview
Smeg designed in Italy. Flexible, high-technology glassware washer engineered for laboratory and life-science applications, optimized for mixed loads and for cleaning bottles, flasks, pipettes, vials and similar glassware.

Highlights

• Modularity: flexible modules allow the wash chamber to be configured according to shape, size and type of glassware (bottles, flasks, pipettes, vials, etc.); modules are interchangeable and can be positioned on right or left of each trolley, on both lower and upper levels.
• Hydraulic circuit: optimized hydraulic circuit ensures greater flow rate and pressure; customizable activation of one or more washing levels/modules concentrates pressure where needed; lower spray arm with angled nozzles for hard-to-reach areas.
• Optimized capacity: chamber usable space optimized to wash glassware of various shapes and sizes; able to wash 1000 ml bottles on both loading levels simultaneously.
• Repositionable upper rack: two identical levels, upper level reconfigurable at two heights for multiple loading configurations without extra trolleys/accessories.
• High-performance washing and drying: washing and drying systems designed for top performance; 50% boost in drying power to reduce residues and shorten readiness time.

Target

• Instruments Solutions: Life science
• Life Science sector: Laboratory; Pharmaceutical; Agro-food

Also available

• GWF29-S0-000 - version with second dosing pump for liquid detergent
• GWF29-0C-000 - version with integrated steam condenser

Technical specifications

• Type: Glassware washer 90 cm
• Denomination/Model series: GWF29
• Product code: GWF29-00-000
• Working temperature: Up to 95 °C
• Washing levels: up to 2
• Upper level reconfigurable at two different heights: Yes
• Enhanced forced hot-air drying system: Yes
• HEPA Filter: Optional
• Door: 1, stainless-steel drop-down door
• Modular system for high loading flexibility: Yes
• Undercounter installation: Yes
• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using ad hoc optional kit (WD-EC4290-1)
• Convertible in tri-phase w/o neutral: Yes, using ad hoc optional kit (WD-EC4290-3)
• 60 Hz possibility: Yes, on demand
• Plug: Not present
• Optimized hydraulic circuit with targeted pressure and increased flow rate: Yes
• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demineralized water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional
• External material of the machine: AISI 304
• Washer chamber material: AISI 316L
• Chamber capacity (net volume): 152 L
• Chamber with rails: Yes
• Product dimensions WxDxH (mm): 900x605x850
• Powder detergent entrance: Yes
• Peristaltic pump for dosing the liquid neutraliser: Yes
• Peristaltic pump for dosing the liquid detergent: Optional
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 2
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Yes
• Cabinet for detergents: Yes, for 2 canisters of 5 L
• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 100 executed programs
• Cycle Archive: Yes
• Download cycle: Optional, through LAN connection / Yes, with USB pen drive
