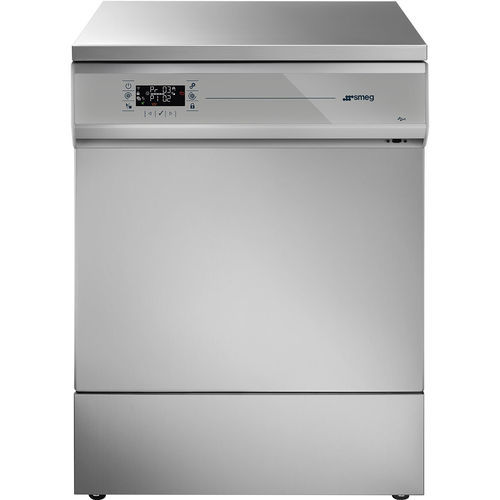

Automatic glassware washer GW4260 series

laboratoryspraywater

Overview
The GW4260 series glassware washer designed by Smeg for laboratory and life science applications. Compact 60 cm undercounter unit with AISI 316L washing chamber, programmable cycles and forced hot-air drying with automatic door opening for fast, complete drying.

Highlights

• Color touch display: touch-on-glass LCD color display for intuitive operation; clear indication of alarms, remaining time and end of cycle; ECO program reduces water and energy consumption.
• Data recording & connectivity: USB input for data logging and PC connection; optional LAN download for traceability and diagnostics.
• Drying performance: forced hot-air drying system combined with automatic door opening ensures rapid and complete drying of glassware.

Technical Features

• Working temperature: up to 95 °C
• Washing levels: up to 2
• Forced hot-air drying system: Yes
• HEPA filter: Optional
• Door: single stainless-steel drop-down door
• Undercounter installation: Yes

Programs

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, with optional kit (WD-EC-1)
• Convertible in tri-phase without neutral: Yes, with optional kit (WD-EC-3)
• 60 Hz possibility: Yes, on demand
• Plug: Not present

Hydraulic connection

• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demineralized water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Also available / Versions

• GW4260-0C-00 - version with integrated steam condenser
• GW4260-00-000 - version with second dosing pump for liquid detergent

Interface & Traceability

• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: last 300 executed programs
• Cycle archive: Yes
• Download cycle: Optional via LAN / Yes with USB pen drive

Construction & Materials

• External material: AISI 304
• Washer chamber material: AISI 316L
• Chamber with rails: Yes

Equipments & Chemical dosing

• Powder detergent inlet: Yes
• Peristaltic pump for liquid neutraliser dosing: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Additional peristaltic pumps: up to 1 (optional)
• Chemical dosing control: Optional
• Detergent level sensor: Optional
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Optional

Optional Accessories (selected)

• CS1-1: supports and basket holders
• CS2: universal solution for large items or specific supports
• M-CS1DUODS: supports and basket holders
• LM80DS: narrow-neck glassware (nozzle count: 68)
• LM40ICS1DS: narrow- and wide-neck glassware; supports and baskets (nozzle count: 40)
• LB8DS: large bottles (nozzle count: 16)
• LB16DS: beakers, Erlenmeyer flasks, bottles (nozzle count: 16)
• LB4BDS: Erlenmeyer flasks, large bottles (nozzle count: 4)
• LPM2010DS / LPM2020DS: pipettes, test tubes, narrow-neck glassware (various nozzle counts)
• KP100DS / KP200DS: test tubes, vials, pipettes (various nozzle counts)

Logistic Information

• Product dimensions W×D×H (mm): 600×600×850

Technical specifications

• Series / Model: GW4260 series
• Type: Glassware washer 60 cm
• Working temperature: up to 95 °C
• Washing levels: up to 2
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Forced hot-air drying system: Yes
• HEPA filter: Optional
• Undercounter installation: Yes
• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• Electrical connection: 3N AC 400V - 50Hz; monophase and tri-phase conversions available with optional kits
• 60 Hz possibility: Yes, on demand
• Cold water connection: Yes; Hot water optional (T4260AC); Demineralized water: Yes
• Drain pump: Yes; Booster pump for demineralized water: Optional
• Powder detergent inlet: Yes; Liquid neutraliser dosing pump: Yes; Additional peristaltic pumps: up to 1 (optional)
• Water softener: Yes; Acqua Stop: Optional; Detergent level sensor: Optional
• Traceability: last 300 executed programs; Cycle archive: Yes; Download cycle via LAN optional or USB pen drive
• Product dimensions (W×D×H mm): 600×600×850
