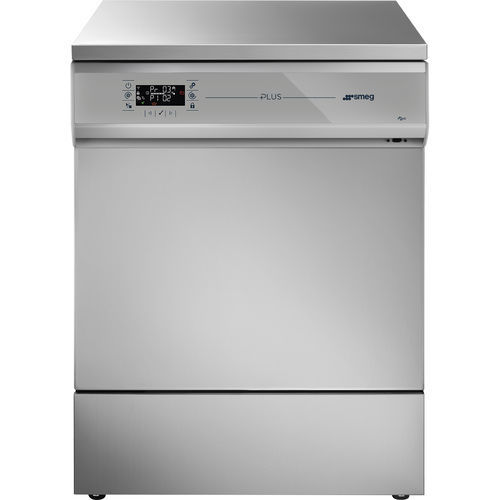

Laboratory glassware washer GW5260-SC-000

for the pharmaceutical industryair blastwater-based detergent

Overview
Smeg designed in Italy, has functional characteristics of quality with a design that combines style and high technology.

Product type
Glassware washer 60 cm (model GW5260-SC-000).

Highlights

• Color LCD display: Color LCD touch-on-glass display allows real-time viewing of operational parameters of the washing cycle (selected program, progress status, temperature, remaining time, Ao values, peristaltic pump dosing). ECO program available to reduce water and energy impact.
• Data recording: USB input for recording laboratory data and immediate PC connection for diagnostics, cycle customization and detailed data analysis.
• Premium materials: Washing chamber and counter door in AISI 316L stainless steel, highly resistant to corrosion and mechanical stress for long lifespan.

Features

• Working temperature: Up to 95 °C
• Washing levels: till 2
• Optimized forced hot-air drying system: Yes
• HEPA Filter: Optional
• Door: 1, stainless-steel drop-down door
• Undercounter installation: Yes

Programs

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes

Interface & Traceability

• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 100 executed programs
• Cycle Archive: Yes
• Download cycle: Optional via LAN / Yes with USB pen drive

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using ad hoc optional kit (WD-EC-1)
• Convertible in tri-phase w/o neutral: Yes, using ad hoc optional kit (WD-EC-3)
• 60 Hz possibility: Yes, on demand

Hydraulic connection

• Cold water connection: Yes
• Hot water connection: Yes
• Demi water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Construction

• External material of the machine: AISI 304
• Washer Chamber Material: AISI 316L
• Chamber capacity (net volume): 147 l
• Chamber with rails: Yes
• Product dimensions WxDxH (mm): 600x640x850

Equipments

• Peristaltic pump for dosing the liquid neutraliser: Yes
• Peristaltic pump for dosing the liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 2
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam Condenser: Yes
• Water softener: Yes
• Conductivity sensor: Optional
• Waste water separation solenoid valve: Optional
• Acqua Stop: Optional
• Probe passage hole for validation: Optional

Target

• Instruments Solutions: Life science
• Life Science sector: Laboratory; Pharmaceutical; Petrochemical Industry; Agro-food

Also available

• GW5260-SC-00G - glass door version

Optional accessories / compatible baskets and supports (selection)

• CS1-1 — Washing functions: Holding of supports and baskets
• CS2 — Universal washing solution to place big dimensions goods or specific supports
• M-CS1DUODS — Washing functions: Holding of supports and baskets
• LM80DS — Narrow-necked glassware, Nozzle number: 68
• LM40ICS1DS — Narrow-necked glassware, Wide neck glassware, Holding of supports and baskets, Nozzle number: 40
• LB8DS — Big bottles, Nozzle number: 16
• LB16DS — Beakers, Beute, Bottles, Nozzle number: 16
• LB4BDS — Beute, Big bottles, Nozzle number: 4
• LPM2010DS / LPM2020DS / KP100DS / KP200DS — specialized nozzle and pipe/pipet/vial accessories (various nozzle numbers)

Caractéristiques / spécifications techniques

• Model: GW5260-SC-000
• Type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Washing levels: till 2
• Drying: Optimized forced hot-air drying system
• HEPA Filter: Optional
• Door: 1 stainless-steel drop-down door
• Chamber material: AISI 316L
• External material: AISI 304
• Chamber capacity (net): 147 l
• Undercounter installation: Yes
• Electrical connection: 3N AC 400V - 50Hz (monophase and tri-phase conversions available via optional kits)
• Dimensions WxDxH (mm): 600 x 640 x 850
• Traceability: Last 100 executed programs; Cycle archive and cycle download (USB/LAN optional)
• Peristaltic dosing pumps: Neutraliser and detergent standard; additional/chemical dosing optional
