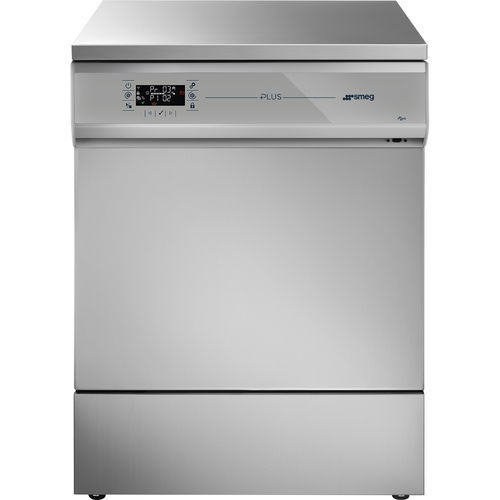

Automatic glassware washer GW5260-PC-000

laboratoryfor the pharmaceutical industrywater-based detergent

Overview
The GW5260-PC-000 by Smeg is a 60 cm laboratory glassware washer engineered for life science and analytical laboratories. It integrates a color LCD touch-on-glass display for real-time monitoring of selected program, progress, temperature, remaining time, A0 values and peristaltic pump dosing. An ECO program reduces water and energy consumption while maintaining validated cleaning cycles.

Highlights

• Color LCD display: live visualization of operational parameters and cycle status.
• Data recording and connectivity: USB port for data export; PC connection for diagnostics, program customization and detailed analysis.
• Corrosion-resistant construction: washing chamber and drop-down door in AISI 316L stainless steel.

Applications / Target
Designed for life science instrumentation and laboratory use. Suitable sectors: laboratories, pharmaceutical production, petrochemical, agro-food and other regulated industrial environments.

Programs and User Interface

• Stored standard programs: 20
• Modifiable programs: 20
• Program editing: yes
• Electronic control with alarm indicators on display, remaining time and end-of-cycle signal
• Traceability: log of last 100 executed programs; Cycle Archive available
• Cycle download: optional via LAN; available via USB drive

Construction & Materials

• External material: AISI 304
• Washing chamber material: AISI 316L
• Chamber with rails: yes
• Door: 1 stainless-steel drop-down door

Technical features & Utilities

• Type: Glassware washer 60 cm
• Working temperature: up to 95 °C
• Washing levels: up to 2
• Optimized forced hot-air drying system: yes
• HEPA filter: optional
• Undercounter installation: yes

Electrical

• Standard connection: 3N AC 400V - 50Hz
• Single-phase conversion: possible with optional kit (WD-EC-1)
• Convertible to three-phase without neutral: possible with optional kit (WD-EC-3)
• 60 Hz operation: available on request

Hydraulic

• Cold water connection: yes
• Hot water connection: yes
• Demineralized water connection: yes
• Drain pump: yes
• Booster pump for demineralized water: optional

Equipments (installed / optional)

• Peristaltic pump for neutraliser dosing: installed
• Peristaltic pump for detergent dosing: installed
• Peristaltic pump for caustic soda: installed
• Peristaltic pump for defoamer: installed
• Chemicals dosing: optional
• Detergent level sensor: optional
• Steam condenser: installed
• Water softener: installed
• Conductivity sensor: optional
• Waste water separation solenoid valve: optional
• Acqua Stop: optional
• Probe passage hole for validation: optional
• Specific kit for petrochemical applications: standard

Logistic information

• Product dimensions WxDxH (mm): 600x640x850

Optional accessories (examples listed on page)

• CS1-1 – holding supports and baskets
• CS2 – universal solution for large items or specific supports
• M-CS1DUODS – holding supports and baskets
• LM80DS – narrow-necked glassware, nozzles: 68
• LM40ICS1DS – narrow and wide-necked glassware, holding supports, nozzles: 40
• LB8DS – large bottles, nozzles: 16
• LB16DS – beakers, bottles, nozzles: 16
• LB4BDS – bottles, nozzles: 4
• LPM2010DS – pipets, test tubes, narrow-necked glassware, nozzles: 31
• LPM2020DS – pipets, narrow-necked glassware, nozzles: 20+20
• KP100DS – test tubes, vials, nozzles: 104
• KP200DS – pipets, vials, nozzles: 208

Technical specifications

• Model: GW5260-PC-000
• Brand: Smeg
• Type: Glassware washer 60 cm
• Working temperature: up to 95 °C
• Washing levels: up to 2
• Drying: optimized forced hot-air drying system (yes)
• HEPA filter: optional
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Undercounter installation: yes
• Electrical connection: 3N AC 400V - 50Hz (convertible with optional kits)
• Hydraulic connections: cold, hot, demineralized water (all: yes)
• Drain pump: yes
• Booster pump for demineralized water: optional
• Peristaltic pumps: neutraliser, detergent, caustic soda, defoamer (installed)
• Water softener: installed
• Steam condenser: installed
• Traceability: last 100 executed programs; Cycle Archive
• Stored programs: 20 standard / 20 modifiable; program editing: yes
• Product dimensions WxDxH (mm): 600x640x850
