Automatic glassware washer GW7015
laboratoryfor the pharmaceutical industryfor the food industry

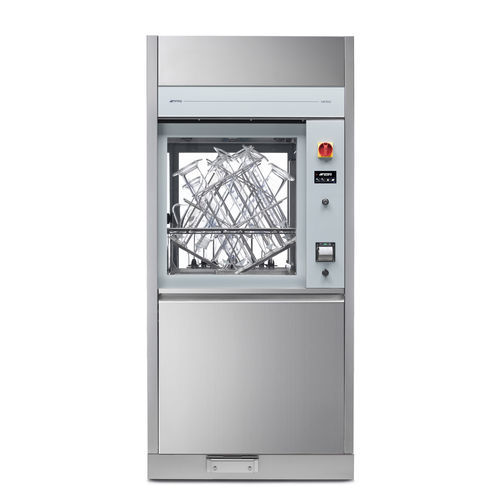

Automatic glassware washer - GW7015 - SMEG Instruments - laboratory / for the pharmaceutical industry / for the food industry
Automatic glassware washer - GW7015 - SMEG Instruments - laboratory / for the pharmaceutical industry / for the food industry
Automatic glassware washer - GW7015 - SMEG Instruments - laboratory / for the pharmaceutical industry / for the food industry - image - 2
Automatic glassware washer - GW7015 - SMEG Instruments - laboratory / for the pharmaceutical industry / for the food industry - image - 3
Automatic glassware washer - GW7015 - SMEG Instruments - laboratory / for the pharmaceutical industry / for the food industry - image - 4
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Operational mode
automatic
Applications
laboratory, for the pharmaceutical industry, for the food industry
Technology
spray, water-based detergent, water

Description

Highlights
  • Touch display: Colour TFT touch display on both sides for intuitive operation; 20 preset + 20 fully customisable programmes.
  • Detergent compartment: Holds 4 × 5 L canisters + 1 × 2 L canister; 2 peristaltic pumps supplied with up to 3 additional pumps possible for automatic dosing.
  • Loading flexibility: Multiple trolley configurations for long and narrow-necked glassware, pipettes, test tubes and large glassware; double sliding doors to separate dirty and clean zones.
  • Data recording: USB input for laboratory data recording; PC connection for diagnostics, cycle customization and analysis.


Features summary
  • Type: High-capacity glassware washer for laboratories
  • Working temperature: Up to 95 °C
  • Washing levels: Up to 6
  • Door: 2 glass sliding doors (single-door GW7015M version available)
  • Washer chamber material: AISI 316L
  • External material: AISI 304
  • Forced hot-air drying: Yes
  • HEPA filter: Optional
  • Detergent compartment capacity: 4 × 5 L + 1 × 2 L; peristaltic dosing pumps


Programs and interface
  • Standard programs stored: 20
  • Customisable programs: 20
  • Program editing and electronic control: Yes
  • Alarm and end-of-cycle indicators: Yes, on display
  • Remaining duration display: Yes
  • Traceability: Last 300 executed programmes; cycle archive available
  • Display languages: IT, EN, DE, ES, FR, PT, RU
  • Data export: USB pen drive; LAN download optional


Electrical and hydraulic connections
  • Electrical connection: 3N AC 400V - 50Hz (convertible to three-phase without neutral)
  • 60 Hz option: Yes, on request
  • Plug: Not supplied
  • Water connections: Cold, hot and demineralised water connections available
  • Drain pump: Yes (required for wall drain)
  • Booster pump for demineralised water: Optional


Equipments and optional items
  • Peristaltic pumps: 2 supplied (additional up to 3)
  • Peristaltic dosing for detergent, neutraliser: Yes
  • Peristaltic dosing for caustic soda / defoamer: Optional
  • Detergent level sensor, conductivity sensor, steam condenser: Optional
  • Water softener, LED chamber lighting, spray arm rotation control: Optional
  • Waste water separation solenoid valve, probe passage hole for validation: Optional


Target sectors
  • Life science instruments and laboratories
  • Applications: Laboratories, Pharmaceutical, Petrochemical, Agro-food


Also available
  • Available versions: GW7015M – single door version


Technical specifications
  • Model: GW7015
  • Type: High-capacity glassware washer
  • Working temperature: Up to 95 °C
  • Washing levels: Up to 6
  • Door: 2 glass sliding doors (GW7015M single-door available)
  • Washer chamber: AISI 316L
  • External material: AISI 304
  • Forced hot-air drying: Yes
  • HEPA filter: Optional
  • Product dimensions (W×D×H mm): 900×1000×1942
  • Electrical: 3N AC 400V - 50Hz (convertible); 60 Hz on request
  • Water connections: Cold, hot, demineralised
  • Drain pump: Yes (for wall drain)
  • Detergent compartment: 4 × 5 L + 1 × 2 L
  • Peristaltic pumps: 2 supplied (additional up to 3)
  • Program memory: 20 standard + 20 modifiable
  • Traceability: Last 300 executed programmes; cycle archive
  • Data recording: USB input; PC connection for diagnostics and cycle customization
