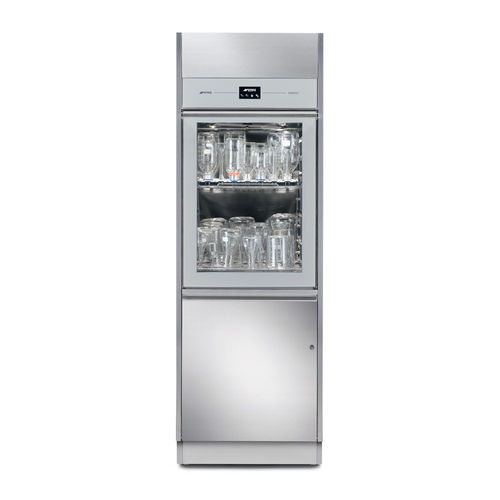

Automatic glassware washer GW6010ML

laboratoryfor the pharmaceutical industryspray

Overview
The GW6010ML is a high-capacity glassware washer designed for laboratory and life science applications, featuring a double-sided colour TFT touch display, flexible loading trolleys and extensive dosing and data recording options.

Colour touch display
The colour TFT touch display is available on both sides of the machine for straightforward daily operation. The interface presents complete cycle information and allows selection of 20 preset programs and 20 fully customisable programs.

Detergent compartment
The washer includes a large detergent compartment that accepts up to three 5-litre canisters and one 1-litre canister. Two peristaltic pumps are supplied for automatic dosing and up to two additional pumps can be installed.

Maximum loading flexibility
Loading flexibility is provided through multiple trolley configurations to accommodate long and narrow-necked glassware, pipettes, test tubes and large vessels. A double drop-down door design reduces the risk of cross-contamination between dirty and clean zones.

Data recording
USB connectivity enables straightforward laboratory data recording and immediate PC connection via software for diagnostics, cycle customisation and data analysis.

Also available
Available version: GW610MLX — stainless steel door option.

Product details
Type: High-capacity glassware washer
Working temperature: Up to 95 °C
Washing levels: Up to 5
Door: 1 glass drop-down door
Washer chamber material: AISI 316L
External material: AISI 304
Forced hot-air drying system: Yes
HEPA filter: Optional
Chamber with rails: Yes
Product dimensions WxDxH (mm): 650x720x1950
Electrical connection: 3N AC 400V - 50Hz (convertible to three-phase without neutral); 60 Hz on request
Hydraulic connections: Cold water: Yes; Hot water: Yes; Demi water: Yes
Drain pump: Yes (only with wall drain). Booster pump for demineralized water: Optional

Programs and interface
Standard programs stored: 20
Modifiable programs: 20
Program editing: Yes
Electronic control: Yes
Alarm indicator: Yes, on the display
Remaining duration display: Yes
End of cycle indicator: Yes
Traceability: Last 300 executed programs
Cycle archive: Yes
Set of display languages: IT, EN, DE, FR, PT, RU
Download cycle: Optional via LAN / Yes with USB pen drive

Equipments (included / optional)

• Detergent compartment: Yes (for 3 × 5 L canisters and 1 × 1 L canister)
• Peristaltic pump for dosing neutraliser: Yes
• Peristaltic pump for dosing detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 2
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam condenser: Optional
• Water softener: Optional
• LED lighting in the washing chamber: Optional
• Conductivity sensor: Optional
• Spray arms rotation control: Optional
• Waste water separation solenoid valve: Optional
• Probe passage hole for validation: Optional

Target sectors
Instruments solutions: Life science
Life science sectors: Laboratory; Pharmaceutical; Petrochemical industry

Characteristics / technical specifications

• Model: GW6010ML
• Type: High-capacity glassware washer
• Working temperature: Up to 95 °C
• Washing levels: Up to 5
• Door: 1 glass drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Forced hot-air drying system: Yes
• HEPA filter: Optional
• Product dimensions WxDxH (mm): 650 x 720 x 1950
• Electrical connection: 3N AC 400V - 50Hz; convertible to three-phase without neutral; 60 Hz on request
• Hydraulic connections: Cold, hot and demineralized water available
• Drain pump: Yes (only with wall drain)
• Booster pump for demineralized water: Optional
• Detergent compartment capacity: 3 × 5 L canisters + 1 × 1 L canister
• Peristaltic pumps: 2 supplied; up to 2 additional installable
• Programs: 20 standard + 20 modifiable; program editing supported
• Interface: Colour TFT touch display; electronic control; alarms and cycle indicators on display
• Data recording: USB input; optional LAN connection for cycle download
• Traceability & archive: Last 300 executed programs stored; cycle archive available
