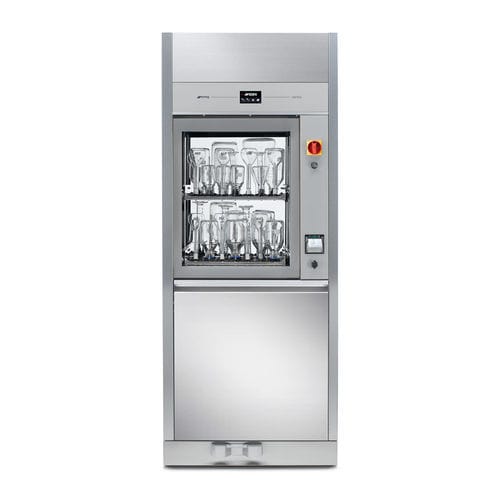

Automatic glassware washer GW7010

for the pharmaceutical industrylaboratoryspray

Overview
The GW7010 is a high-capacity glassware washer for laboratory, life science and pharmaceutical applications. It combines a double sliding door layout to minimise cross-contamination, a large detergent compartment with peristaltic dosing and multiple trolley/inset options to handle long-neck glassware, pipettes, test tubes and large bottles.

Color touch display
Colour TFT touch display on both sides of the machine enables intuitive operation and provides full cycle information, alarms and programme management. The interface includes 20 preset programmes and 20 fully customisable programmes.

Detergent compartment
Large detergent compartment accepts multiple canisters (documented configurations up to four 5 L canisters + one 1 L canister). Two peristaltic pumps are supplied for automatic dosing; up to two additional pumps can be installed for neutraliser, caustic or anti-foam dosing.

Loading flexibility
Wide choice of trolleys and specific inserts to accommodate bottles, pipettes, test tubes and other specialised glassware. Double sliding doors support workflow separation between dirty and clean zones.

Technical features

• Type: High-capacity glassware washer
• Model: GW7010 (GW7010M single-door version available)
• Washer chamber material: AISI 316L
• External casing: AISI 304
• Working temperature: Up to 95 °C
• Washing levels: Up to 5
• Drying: Forced hot-air drying system
• Doors: 2 glass sliding doors
• HEPA filter: Optional

Programs

• Standard programmes stored: 20
• Modifiable programmes: 20
• Program editing and archiving: Yes
• Traceability: Last 300 executed programmes stored

Interface & Controls

• Electronic control and alarms: Yes
• Remaining time and end-of-cycle indicators: Yes
• Display languages: IT, EN, DE, FR, PT, RU
• Download cycle archive: Optional via LAN / Yes via USB stick

Electrical connection

• Electrical: 3N AC 400V - 50Hz (convertible to tri-phase without neutral)
• 60 Hz: Available on request
• Plug: Not supplied

Hydraulic connection

• Cold water: Yes
• Hot water: Yes
• Demineralised water: Yes
• Drain pump: Yes (only with wall drain)
• Booster pump for demineralised water: Optional

Equipments & Options
Supplied with two peristaltic dosing pumps; up to two additional pumps can be fitted. Optional equipment: steam condenser, water softener, LED chamber lighting, conductivity sensor, spray-arm rotation control, wastewater separation solenoid valve, probe passage for validation, detergent level sensor, HEPA filter.

Available versions

• GW7010 — Double sliding door
• GW7010M — Single door version

Logistics / Dimensions
Product dimensions (WxDxH mm): 780 x 800 x 1950

Accessories (examples)

• Trolleys and inserts for bottles, pipettes, test tubes and other glassware
• Specific washing inserts and racks (see accessories list)

Technical specifications

• Model: GW7010
• Brand: Smeg
• Type: High-capacity glassware washer
• Working temperature: Up to 95 °C
• Washing levels: Up to 5
• Drying: Forced hot-air drying
• Doors: 2 glass sliding doors
• Chamber material: AISI 316L
• External material: AISI 304
• Detergent compartment capacity: Configurations reported up to four 5 L canisters + one 1 L canister
