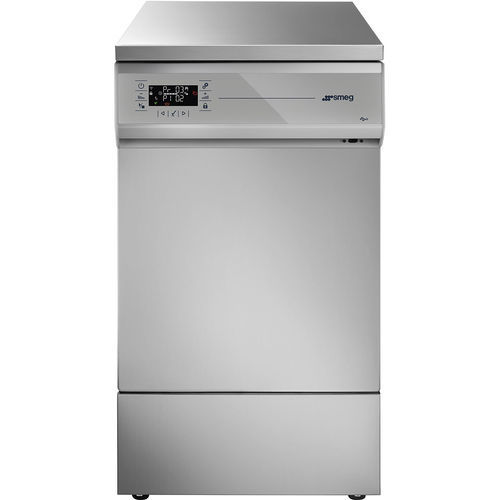

Automatic glassware washer GW1245-S0-100
for the food industrylaboratorywater-based detergent

Automatic glassware washer - GW1245-S0-100 - SMEG Instruments - for the food industry / laboratory / water-based detergent
Automatic glassware washer - GW1245-S0-100 - SMEG Instruments - for the food industry / laboratory / water-based detergent
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Operational mode
automatic
Applications
for the food industry, laboratory
Technology
water-based detergent, water

Description

Overview
  • Product family: Glassware washers
  • Product code: GW1245-S0-100
  • Type: Glassware washer 45 cm
  • Undercounter installation: Yes


Target
  • Instruments Solutions: Life science
  • Life Science sector: Agro-food; Small Laboratories


Technical features
  • Working temperature: Up to 95 °C
  • Washing levels: till 2
  • Door: 1, stainless-steel drop-down door
  • Washer chamber material: AISI 316L
  • External material of the machine: AISI 304
  • Undercounter installation: Yes


Programs
  • Standard programs stored: 20
  • Modifiable programs: 20
  • Program editing: Yes


Electrical connection
  • Electrical connection: 1N AC 230V - 50Hz
  • 60 Hz possibility: Yes, on demand
  • Plug: (F;E) Schuko


Hydraulic connection
  • Cold water connection: Yes
  • Demi water connection: Yes
  • Drain pump: Yes
  • Booster pump for demineralized water: Optional


Interface and traceability
  • Electronic control: Yes
  • Alarm indicator: Yes, on the display
  • Remaining duration display: Yes
  • End of cycle indicator: Yes
  • Traceability: Last 300 executed programs
  • Cycle Archive: Yes
  • Download cycle: Optional, through LAN connection / Yes, with USB pen drive


Equipments
  • Peristaltic pump for dosing the liquid neutraliser: Yes
  • Peristaltic pump for dosing the liquid detergent: Yes
  • Possibility to install additional peristaltic pumps: Yes, up to 1
  • Chemicals dosing: Optional
  • Detergent level sensor: Optional
  • Water softener: Yes
  • Probe passage hole for validation: Optional


Logistic information
  • Product dimensions WxDxH (mm): 450x620x850


Technical specifications
  • Denomination: GW1245-S0-100 (Glassware washer 45 cm)
  • Working temperature: Up to 95 °C
  • Washing levels: till 2
  • Door: 1 stainless-steel drop-down door
  • Washer chamber material: AISI 316L
  • External material: AISI 304
  • Standard programs stored: 20; Modifiable programs: 20; Program editing: Yes
  • Electrical connection: 1N AC 230V - 50Hz; 60 Hz on demand; Plug: (F;E) Schuko
  • Hydraulic: Cold water Yes; Demi water Yes; Drain pump Yes; Booster pump optional
  • Interface: Electronic control, alarm on display, remaining duration display, end of cycle indicator
  • Traceability & data: Last 300 executed programs, Cycle Archive, cycle download via LAN or USB pen drive (optional)
  • Equipments: Peristaltic pumps for neutraliser and detergent; water softener; optional detergent sensor and probe passage hole
  • Dimensions (WxDxH mm): 450 x 620 x 850
