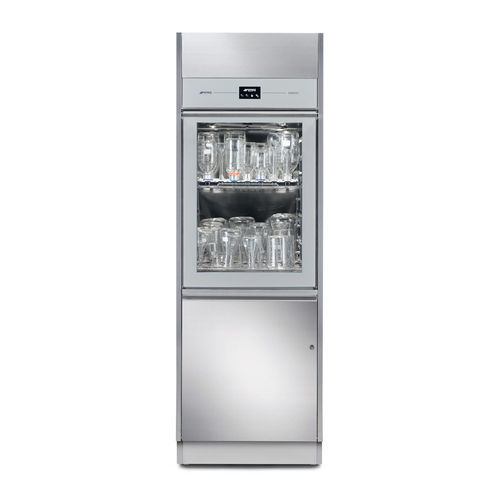

Automatic glassware washer GW6010L

laboratoryspraywater

Overview
The GW6010L is a high-capacity glassware washer for laboratory and life-science environments. It offers dual-side colour TFT touch displays, 20 preset and 20 fully customisable programmes, and multiple trolley configurations to handle long-necked glassware, pipettes, test tubes and large items. A double drop-down door design minimises cross-contamination between dirty and clean zones.

Key functional features

• Type: High-capacity glassware washer
• Display: Dual-side colour TFT touch, 20 standard + 20 modifiable programmes
• Washing levels: Up to 5 levels
• Drying: Forced hot-air drying system
• Detergent compartment: Holds up to three 5 L canisters + one 1 L canister; 2 peristaltic pumps supplied; up to 2 additional pumps installable
• Data: USB input for data recording; direct PC connection for diagnostics, cycle customisation and analysis

Construction and materials

• External material: AISI 304
• Washer chamber: AISI 316L
• Door: 2 glass drop-down doors (prevents cross-contamination)

Interface and traceability

• Electronic control: Yes
• Alarm indicator: Yes, shown on the display
• Remaining duration display: Yes
• End-of-cycle indicator: Yes
• Traceability: Last 300 executed programmes stored
• Cycle archive: Yes
• Display languages: IT, EN, DE, FR, PT, RU
• Download cycle archive: Optional via LAN / Yes via USB flash drive

Electrical & hydraulic connections

• Electrical connection: 3N AC 400V - 50Hz (convertible to three-phase without neutral)
• 60 Hz: Available on request
• Plug: Not supplied
• Water connections: Cold, hot and demineralised (demi) water connections available
• Drain pump: Yes (only with wall drain)
• Booster pump for demineralised water: Optional

Programs & customization

• Standard programmes: 20 stored
• Modifiable programmes: 20
• Program editing: Yes

Equipments and optional accessories
The washer can be configured with multiple supports, baskets and dosing devices. Examples of optional items include:

• CLB310UNIV — positioning of washing shelves and inserts
• INSPLAV10 — supports for varied glassware and baskets
• INS28U6260 — varied glassware; 28 nozzles
• INS12U4180DV — bottles and narrow-neck glassware; 12+6 nozzles
• INS56U4140 — bottles and varied glassware; 56 nozzles
• INSLP28U4140 — pipettes and varied glassware; 28 nozzles
• INSKP200 — test tubes, vials; 208 nozzles

Other functional notes
Detergent dosing: Peristaltic pumps for neutraliser and detergent supplied; pumps for caustic soda and defoamer available as options. Additional optional items: detergent level sensor, steam condenser, water softener, LED tank lighting, conductivity sensor, spray-arm rotation control, wastewater separation solenoid valve, probe passage for validation.

Technical specifications

• Model: GW6010L
• Type: High-capacity glassware washer
• Working temperature: Up to 95 °C
• Washing levels: Up to 5
• Forced hot-air drying: Yes
• HEPA filter: Optional
• Doors: 2 glass drop-down doors
• Washer chamber: AISI 316L
• External material: AISI 304
• Dimensions (WxDxH): 650 × 720 × 1950 mm
• Electrical: 3N AC 400V - 50Hz; convertible to three-phase without neutral; 60 Hz on request; plug not supplied
• Water connections: Cold, hot, demineralised
• Drain pump: Yes (only with wall drain)
• Booster pump for demineralised water: Optional
• Detergent compartment capacity: 3 × 5 L + 1 × 1 L
• Peristaltic pumps supplied: 2 (additional up to 2 possible)
• Program storage: 20 standard + 20 modifiable
• Traceability: Last 300 executed programmes; cycle archive available
• Data recording: USB input; optional LAN download; PC connection via software for diagnostics and cycle customisation
• Available version: GW6010LX (stainless-steel doors)
