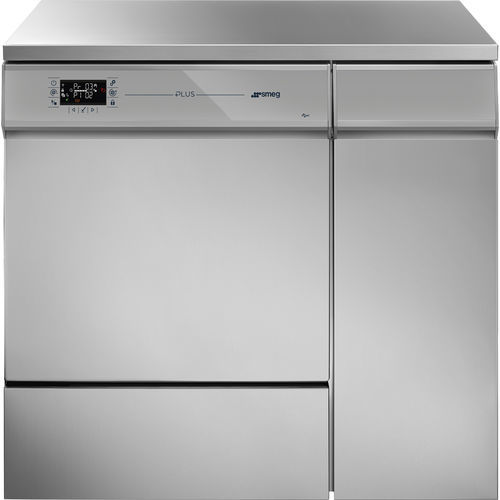

Automatic glassware washer GW5290-SC-000

for the pharmaceutical industrylaboratorythermal

Overview
Designed by Smeg in Italy, the GW5290-SC-000 is a 90 cm glassware washer for life science and laboratory applications. It combines an AISI 316L wash chamber and configurable loading solutions to process long-necked and narrow-necked glassware, pipettes, test tubes and larger labware.

Highlights

• Color touch display: Color LCD touch-on-glass for real-time monitoring of program, progress, temperature, remaining time, Ao values and peristaltic dosing. ECO program reduces water and energy consumption.
• Detergent compartment: Capacity for up to four 5 L canisters (option: shelf accessory).
• Data recording: USB port for laboratory data logging; PC connection for diagnostics, cycle customization and analysis.
• Loading flexibility: Multiple trolley and support configurations for varied glassware geometries.
• Premium materials: Washing chamber and inner door in AISI 316L for chemical and corrosion resistance.
• Complete drying: Optimized forced hot-air drying to minimize residual moisture.

Target

• Instruments solutions: Life science
• Applicable sectors: Laboratory; Pharmaceutical; Petrochemical; Agro-food

Type
Glassware washer 90 cm

Features

• Working temperature: Up to 95 °C
• Washing levels: Up to 2
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• Undercounter installation: Yes
• Optimized forced hot-air drying system: Yes
• HEPA filter: Optional

Programs and Control

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 100 executed programs
• Cycle archive: Yes
• Download cycle: Optional via LAN / Yes, via USB pen drive

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• Single-phase conversion: Yes, with optional kit (WD-EC4290-1)
• Convertible to three-phase without neutral: Yes, with optional kit (WD-EC4290-3)
• 60 Hz: Available on request

Hydraulic connection

• Cold water connection: Yes
• Hot water connection: Yes
• Deionized (demi) water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Construction

• External material: AISI 304
• Washer chamber material: AISI 316L
• Chamber with rails: Yes

Equipments

• Peristaltic pump for neutraliser dosing: Yes
• Peristaltic pump for detergent dosing: Yes
• Peristaltic pump for caustic dosing: Optional
• Peristaltic pump for defoamer: Optional
• Additional peristaltic pumps: Up to 3
• Chemical dosing: Optional
• Detergent level sensor: Optional
• Steam condenser: Yes
• Water softener: Yes
• Conductivity sensor: Optional
• Waste water separation solenoid valve: Optional
• Acqua Stop: Optional
• Probe passage hole for validation: Optional
• Cabinet for detergents: Yes, for 2 x 5 L canisters

Also available
Available versions: GW5290-SC-00G (glass door version)

Logistic Information
Product dimensions WxDxH (mm): 900x640x850

Optional accessories (examples)

• CS1-1: Washing functions - holding supports and baskets
• CS2: Universal washing solution for large goods or specific supports
• M-CS1DUODS: Washing functions - holding supports and baskets
• LM80DS: Narrow-necked glassware support (Nozzle number: 68)
• LM40ICS1DS: Narrow- and wide-neck glassware supports (Nozzle number: 40)
• LB8DS, LB16DS, LB4BDS: Various bottle/beaker support configurations
• LPM2010DS, LPM2020DS, KP100DS, KP200DS: Solutions for pipettes, test tubes and vials with various nozzle counts

Specifications

• Model: GW5290-SC-000
• Type: Glassware washer 90 cm
• Brand: Smeg
• Working temperature: Up to 95 °C
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Product dimensions (WxDxH mm): 900x640x850
• Washing levels: Up to 2
• Drying: Optimized forced hot-air drying system
• HEPA filter: Optional
• Undercounter installation: Yes
• Stored programs: 20; Modifiable: 20; Program editing: Yes
• Electronic control and display alarms: Yes
• Traceability & archive: Last 100 executed programs; Cycle archive
• Electrical: 3N AC 400V - 50Hz (single/three-phase conversion options; 60 Hz on demand)
• Hydraulics: Cold/Hot/Deionized water connections; Drain pump included; Booster pump optional
• Main equipment: Peristaltic dosing pumps (neutraliser, detergent), water softener, steam condenser, detergent cabinet
