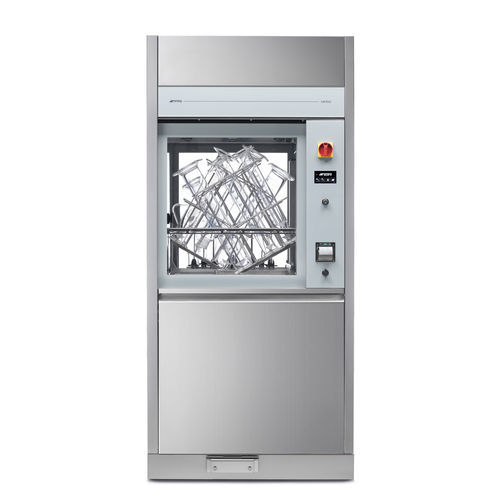

Automatic glassware washer GW7015T

laboratorywater-based detergentspray

Overview High-capacity glassware washer GW7015T designed in Italy. Key elements include an AISI 316L washer chamber, external AISI 304 casing, double glass sliding doors to prevent cross-contamination, forced hot-air drying and FAST washing cycles (up to 33 min). Colour TFT touch displays are fitted on both sides for intuitive operation. The unit provides 20 preset and 20 fully customisable programmes. A large detergent compartment accepts 4 canisters of 5 L and 1 canister of 2 L; two peristaltic dosing pumps are supplied and up to 3 additional pumps can be installed. USB connectivity enables laboratory data recording and PC connection for diagnostics, cycle customisation and analysis. Traceability of the last 300 executed programmes and a cycle archive are available.

Functional features

• Type: High-capacity glassware washer
• Working temperature: Up to 95 °C
• Washing levels: Up to 6
• Door: 2 glass sliding doors (double sliding door to prevent cross contamination)
• Washer chamber material: AISI 316L
• External material: AISI 304
• Forced hot-air drying system: Yes
• FAST washing cycles: Yes, max. 33 min
• HEPA filter: Optional
• LED lighting in the washing chamber: Yes
• Peristaltic pumps: 2 supplied for neutraliser and detergent; pumps for caustic soda and defoamer optional; up to 3 additional peristaltic pumps possible
• Detergent compartment capacity: 4 x 5 L + 1 x 2 L
• Detergent level sensor: Optional
• Conductivity sensor: Optional
• Spray arms rotation control: Optional
• Waste water separation solenoid valve: Optional
• Probe passage hole for validation: Optional

Electrical & Hydraulic connections

• Electrical connection: 3N AC 400V - 50Hz
• Convertible to three-phase without neutral: Yes
• 60 Hz possibility: Yes, on demand
• Plug: Not present
• Cold water connection: Yes
• Hot water connection: Yes
• Demi (demineralised) water connection: Yes
• Drain pump: Yes (only with wall drain)
• Booster pump for demineralized water: Optional

Programs & Interface

• Standard program stores: 20
• Modifiable programs: 20
• Program editing: Yes
• FAST washing cycles: Yes, max. 33 min
• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 300 executed programs
• Cycle archive: Yes
• Display languages: IT, EN, DE, ES, FR, PT, RU
• Download cycle: Optional via LAN; yes via USB pen drive

Loading & design Maximum loading flexibility through a wide choice of trolley configurations for long and narrow-necked glassware, pipettes, test tubes and large glassware. Double sliding door prevents cross contamination between dirty and clean zones.

Available versions

• GW7015TM - Single door version with FAST cycles

Technical specifications

• Model: GW7015T
• Type: High-capacity glassware washer
• Working temperature: Up to 95 °C
• Washing levels: Up to 6
• Forced hot-air drying system: Yes
• Washer chamber material: AISI 316L
• External material: AISI 304
• Door: 2 glass sliding doors
• FAST washing cycles: Yes, max. 33 min
• Programs: 20 standard + 20 modifiable
• Detergent compartment capacity: 4 x 5 L + 1 x 2 L
• Included dosing pumps: 2 peristaltic pumps
• Possibility to add peristaltic pumps: Up to 3
• USB data recording: Yes
• Traceability: Last 300 executed programs
• Product dimensions (WxDxH mm): 900x1000x1942
• Electrical connection: 3N AC 400V - 50Hz (convertible to three-phase without neutral)
• Hydraulic connections: Cold, hot and demi water connections available
