Automatic glassware washer GWF16-SC-00G

laboratoryfor the pharmaceutical industrywater-based detergent

Product

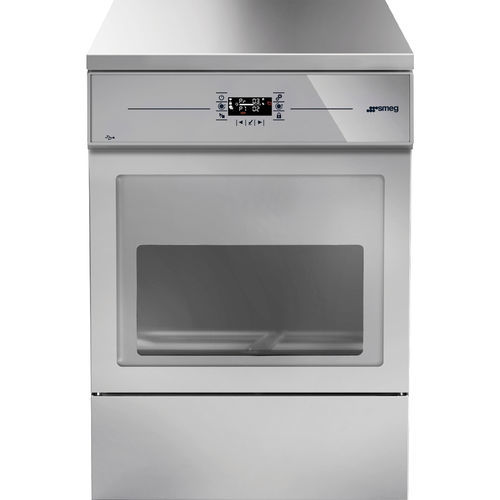

Glassware washer model GWF16-SC-00G. Undercounter 60 cm glassware washer designed for life science and laboratory use, suitable for bottles, flasks, pipettes, vials and mixed loads.

Highlights

• Modularity: Flexible modules allow the wash chamber to be configured according to shape, size and type of glassware (bottles, flasks, pipettes, vials, etc.). All modules are interchangeable and positionable on both lower and upper levels.
• Hydraulic circuit: Optimized hydraulic circuit for greater flow rate and targeted pressure; customizable activation of washing levels/modules; lower spray arm with angled nozzles for hard-to-reach areas.
• Optimized capacity: Chamber usable space allows simultaneous washing of various shapes/sizes; 1000 ml bottles can be washed on both loading levels at the same time.
• Repositionable upper rack: Two identical, reconfigurable levels; upper level adjustable at two heights for different glassware sizes without additional trolleys.

Features
Working temperature up to 95 °C. Washing levels: up to 2. Stainless steel door with glass porthole. Modular system for high loading flexibility. Undercounter installation.

Programs

• Standard stored programs: 20
• Modifiable programs: 20
• Program editing: Yes

Electrical & Hydraulic
Electrical connection: 3N AC 400V - 50Hz. Monophase conversion: Yes, using optional kit (WD-EC-1). Convertible in tri-phase w/o neutral: Yes, using optional kit (WD-EC-3). 60 Hz possibility: Yes, on demand. Plug: Not present. Hydraulic: optimized circuit with targeted pressure and increased flow rate. Cold water connection: Yes. Hot water connection: Optional (T4260AC). Demi water connection: Yes. Drain pump: Yes. Booster pump for demineralized water: Optional.

Interface & Controls
Electronic control with display. Alarm indicator on display. Remaining duration display and end-of-cycle indicator. Traceability: last 100 executed programs. Cycle archive: Yes. Download cycle: Optional via LAN connection or with USB pen drive.

Construction & Capacity
External material: AISI 304. Washer chamber material: AISI 316L. Chamber net volume: 152 l. Chamber with rails: Yes. Product dimensions WxDxH (mm): 600x605x850.

Equipments

• Peristaltic pump for dosing liquid neutraliser: Yes
• Peristaltic pump for dosing liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 1
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam condenser: Yes
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Yes

Target sectors
Life science: Laboratory; Pharmaceutical; Agro-food; Small Laboratories.

Technical specifications

• Model: GWF16-SC-00G
• Type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Washing levels: up to 2
• Upper level reconfigurable at two different heights: Yes
• Door: Stainless steel door with glass porthole
• Modular loading system: Yes
• Undercounter installation: Yes
• Electrical connection: 3N AC 400V - 50Hz (monophase/tri-phase conversion kits available)
• 60 Hz: Available on demand
• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demi water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional
• External material: AISI 304
• Washer chamber material: AISI 316L
• Chamber capacity (net): 152 l
• Product dimensions (WxDxH mm): 600x605x850
• Standard stored programs: 20; Modifiable programs: 20; Program editing: Yes
• Interface: Electronic control, alarm indicator, remaining duration display, end of cycle indicator, traceability (last 100 executed programs), cycle archive, optional download via LAN/USB
• Equipments: peristaltic pumps (neutraliser, detergent), steam condenser, water softener; optional additional pumps and sensors; probe passage hole for validation
