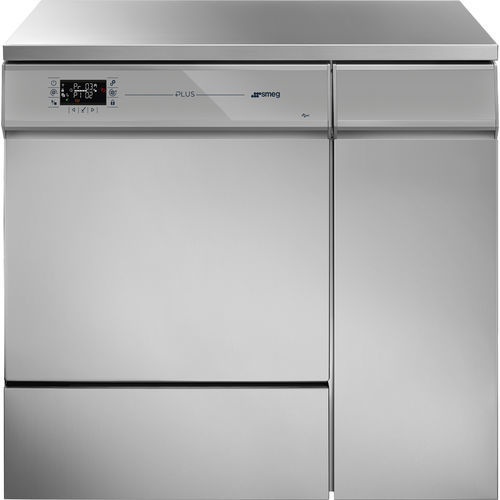

Automatic glassware washer GW5290-PC-000

laboratoryfor the pharmaceutical industrywater-based detergent

Overview
The GW5290-PC-000 is a 90 cm glassware washer engineered for laboratory and life-science environments. It combines a corrosion-resistant AISI 316L wash chamber, configurable trolleys for a wide range of lab glassware and instruments, a color touch display for monitoring and program editing, and integrated systems for dosing and forced hot-air drying.

Highlights

• Color touch display: real-time monitoring of program, progress, temperature, remaining time, A0 values and peristaltic pump dosing; ECO program to reduce water and energy use.
• Detergent cabinet: capacity for two 5 L canisters standard (shelf option increases capacity up to four 5 L canisters).
• Data recording and connectivity: USB port for traceability and PC connection for diagnostics, program customization and data analysis; optional LAN download.
• Flexible loading: multiple trolley configurations to handle long-neck and narrow-neck glassware, pipettes, test tubes and large vessels.
• Premium construction: washing chamber and inner door in AISI 316L; external panels in AISI 304 for durability in aggressive environments.
• Complete drying: optimized forced hot-air drying system for rapid moisture removal and consistent results.

Target sectors

• Life science
• Laboratories, pharmaceutical, petrochemical, agro-food and small laboratory facilities

Optional accessories / compatible trolleys

• CS1-1 — support and basket holding functions
• CS2 — universal solution for large items or specific supports
• M-CS1DUODS — support and basket holding functions
• LM80DS — narrow-neck glassware (Nozzle count: 68)
• LM40ICS1DS — narrow- and wide-neck glassware; support and basket holding (Nozzle count: 40)
• LB8DS, LB16DS, LB4BDS — various bottle and beaker configurations
• LPM2010DS, LPM2020DS, KP100DS, KP200DS — pipette/test-tube specific supports with respective nozzle counts

Technical specifications

• Type: Glassware washer 90 cm
• Model designation: GW5290-PC-000
• Working temperature: up to 95 °C
• Washing levels: up to 2
• Door: one stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Chamber with rails: yes
• Product dimensions WxDxH (mm): 900 x 640 x 850
• Undercounter installation: yes
• Optimized forced hot-air drying: yes (complete drying)
• HEPA filter: optional
• Peristaltic pumps: dosing for neutraliser, detergent, caustic soda and defoamer; up to 1 additional pump can be fitted
• Chemicals dosing: optional
• Detergent level sensor: optional
• Steam condenser: yes
• Water softener: yes
• Conductivity sensor: optional
• Waste water separation solenoid valve: optional
• Acqua Stop: optional
• Probe passage hole for validation: optional
• Detergent cabinet: standard for 2 x 5 L (optional shelf expands to 4 x 5 L)
• Specific kit for petrochemical applications: standard
• Programs: 20 stored programs (20 modifiable); program editing enabled
• Program traceability: last 100 executed programs; cycle archive available; download via USB (LAN optional)
• Electronic control and alarms: yes; remaining time and end-of-cycle indicators on display
• Electrical connection: 3N AC 400V - 50 Hz (monophase and tri-phase conversions available with optional kits)
• 60 Hz: available on request
• Hydraulic connections: cold, hot and demineralized water connections
• Drain pump: yes; booster pump for demineralized water: optional
