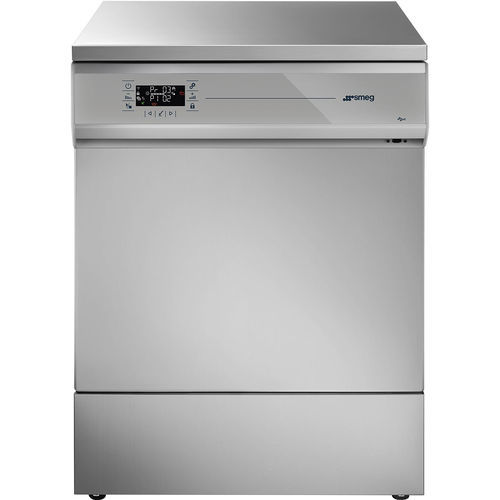

Automatic glassware washer GW0260 series

for the food industrylaboratorywater

Highlights
Color touchscreen display: the color touchscreen provides intuitive daily operation. The compact user interface gives the operator comprehensive information, including specific programs for different needs. The ECO program offers a washing cycle with reduced water and energy consumption compared with standard cycles.

Data logging
USB input allows practical and effective laboratory data recording, and provides immediate PC connection via software for diagnostics, cycle customization and detailed data analysis.

Application and type
Solutions: Life science
Life science sectors: Agro-food; Small laboratories
Type: 60 cm glassware washer

Programs
Stored standard programs: 7

Electrical connection
Standard electrical connection: 3N AC 400V - 50Hz
Convertible to single-phase: Yes, via optional kit (WD-EC-1)
Convertible to three-phase without neutral: Yes, via optional kit (WD-EC-3)
60 Hz capability: Yes, on request
Plug: No

Hydraulic connection
Cold water inlet: Yes
Demineralized water inlet: Yes
Drain pump: Yes
Booster pump for demineralized water: Optional

Interface and control
Electronic control: Yes
Alarm indicator: Yes, on display
Remaining time display: Yes
End-of-cycle indicator: Yes
Cycle archiving: Yes
Cycle archive download: Yes, via USB stick

Construction and equipment
External casing material: AISI 304
Washing chamber material: AISI 304
Tank with guides: Yes
Powder detergent dispenser: Yes
Peristaltic pump for liquid neutralizer dosing: Yes
Detergent level sensor: Optional
Water softener: Yes
Water stop: Optional
Probe pass-through port for validation: Optional

Available versions
GW0260-S0-00J - version with second peristaltic pump for liquid detergent

Logistics information
Product dimensions LxPxA (mm): 600x600x850

Characteristics / technical specifications

• Operating temperature: Up to 85 °C
• Washing levels: up to 2
• Door: 1, hinged steel
• Under-counter installable: Yes
• Stored standard programs: 7
• Electrical connection: 3N AC 400V - 50Hz
• Convertible to single-phase: Yes, via optional kit (WD-EC-1)
• Convertible to three-phase without neutral: Yes, via optional kit (WD-EC-3)
• 60 Hz capability: Yes, on request
• Plug: No
• Cold water inlet: Yes
• Demineralized water inlet: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional
• Available versions: GW0260-S0-00J (version with second peristaltic pump for liquid detergent)
• Electronic control: Yes
• Alarm indicator: Yes, on display
• Remaining time display: Yes
• End-of-cycle indicator: Yes
• Cycle archiving: Yes
• Cycle archive download: Yes, via USB stick
• External casing material: AISI 304
• Washing chamber material: AISI 304
• Tank with guides: Yes
• Powder detergent dispenser: Yes
• Peristaltic pump for liquid neutralizer dosing: Yes
• Detergent level sensor: Optional
• Water softener: Yes
• Water stop: Optional
• Probe pass-through port for validation: Optional
• Dimensions LxPxA (mm): 600x600x850
