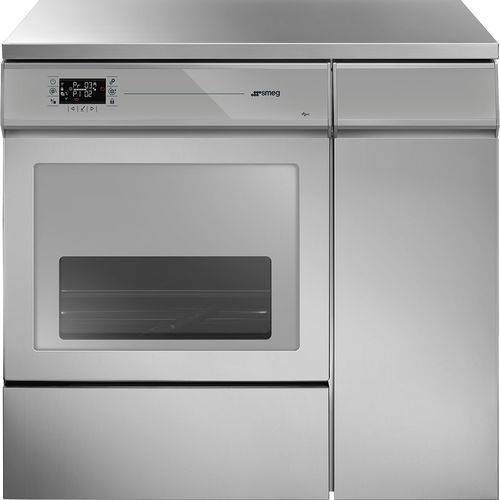

Automatic glassware washer GW4290-SC-00G

laboratorywater-based detergentwater

Overview
The colour touch display enables simple and intuitive daily operation. The compact interface provides a full range of information including specific programs for every need. The ECO program can be activated to run washing cycles with lower water and energy impact than traditional cycles.

Detergent compartment
The machine has a capacious detergent compartment suitable for holding up to four 5-liter canisters, thanks to the shelf that can be used as an optional accessory.

Loading
Maximum loading flexibility is provided by a wide choice of trolley configurations to accommodate laboratory instrumentation such as long-necked and narrow-necked glasses, pipettes, test tubes and large glasses.

Data recording
USB input enables convenient and efficient laboratory data recording and immediate connection to PC via software for diagnostics, cycle customization and timely data analysis.

Technical features
Working temperature: Up to 95 °C
Washing levels: till 2
Forced hot-air drying system: Yes
HEPA Filter: Optional
Door: Stainless steel door with glass porthole
Undercounter installation: Yes

Programs

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using ad hoc optional kit (WD-EC4290-1)
• Convertible in tri-phase without neutral: Yes, using ad hoc optional kit (WD-EC4290-3)
• 60 Hz possibility: Yes, on demand

Hydraulic connection

• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demi water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Interface and traceability

• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 300 executed programs
• Cycle Archive: Yes
• Download cycle: Optional through LAN / Yes with USB pen drive

Construction and equipment

• External material of the machine: AISI 304
• Washer Chamber Material: AISI 316L
• Chamber with rails: Yes
• Peristaltic pump for dosing the liquid neutraliser: Yes
• Peristaltic pump for dosing the liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 2
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam Condenser: Yes
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Optional
• Cabinet for detergents: Yes, for 2 canisters of 5l

Also available
Available versions: GW4290-SC-000 - version with stainless steel door

Logistic information
Product dimensions WxDxH (mm): 900x600x850

Technical specifications

• Model: GW4290-SC-00G
• Type: Glassware washer 90 cm
• Working temperature: Up to 95 °C
• Washing levels: till 2
• Forced hot-air drying system: Yes
• Washer Chamber Material: AISI 316L
• External material: AISI 304
• Door: Stainless steel door with glass porthole
• Undercounter installation: Yes
• Standard programs stored: 20
• Modifiable programs: 20
• Electrical connection: 3N AC 400V - 50Hz (conversion kits available)
• Cold water connection: Yes; Hot water: Optional
• Drain pump: Yes; Booster pump: Optional
• Traceability: Last 300 executed programs; Cycle archive available
• Data export: USB / optional LAN
• Dimensions (WxDxH mm): 900 x 600 x 850
