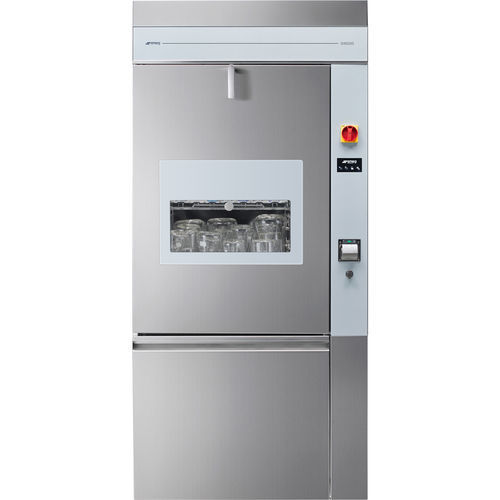

Automatic glassware washer GW6290DSG

for the pharmaceutical industrylaboratorywater-based detergent

Overview
High-capacity glassware washer designed for laboratory and life science applications. Suitable for laboratory, pharmaceutical and petrochemical environments. Intended for professional use.

Target

• Instruments Solutions: Life science
• Life Science sector: Laboratory; Pharmaceutical; Petrochemical Industry

Type

• High-capacity glassware washer

Technical Features

• Working temperature: Up to 95 °C
• Washing levels: up to 3
• Forced hot-air drying system: Yes
• HEPA filter: Optional
• Door: Stainless steel door with glass porthole

Programs

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• 60 Hz possibility: Yes, on demand
• Plug: Not present

Hydraulic connection

• Cold water connection: Yes
• Hot water connection: Yes
• Demineralized (Demi) water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Interface

• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 300 executed programs
• Cycle Archive: Yes
• Set of display languages: IT (Italiano), EN, DE, FR, PT, RU
• Download cycle: Optional through LAN connection / Yes, with USB pen drive

Construction

• External material of the machine: AISI 304
• Washer chamber material: AISI 316L
• Chamber with rails: Yes

Equipments

• Detergent compartment: Yes, for 4 x 5 liter cans
• Peristaltic pump for dosing the liquid neutraliser: Yes
• Peristaltic pump for dosing the liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 3
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• LED lighting in the washing chamber: Yes
• Conductivity sensor: Optional
• Waste water separation solenoid valve: Optional
• Probe passage hole for validation: Optional

Also available
Available version: GW6290DS - Solid stainless steel door version

Logistic Information
Product dimensions WxDxH (mm): 900x800x1950

Optional accessories (examples)

• L685 — Washing functions: Various glassware, Nozzle number: 76
• LM6-5 — Washing functions: Drums, Nozzle number: 5
• LP6 — Washing functions: Pipettes, Positions: 100

Caractéristiques / spécifications techniques

• Model: GW6290DSG
• Type: High-capacity glassware washer
• Working temperature: Up to 95 °C
• Washing levels: up to 3
• Forced hot-air drying: Yes
• HEPA filter: Optional
• Door: Stainless steel with glass porthole (alternative GW6290DS: solid stainless steel door)
• Washer chamber: AISI 316L
• External material: AISI 304
• Chamber with rails: Yes
• Detergent compartment capacity: 4 x 5 L cans
• Peristaltic pumps: dosing for neutraliser and detergent included; additional/caustic/defoamer pumps optional; up to 3 additional
• Detergent level sensor: Optional
• Conductivity sensor: Optional
• Waste water separation solenoid valve: Optional
• Probe passage hole for validation: Optional
• Programs stored: 20 (standard) / 20 modifiable; program editing: Yes
• Traceability: Last 300 executed programs; Cycle Archive: Yes
• Electronic control: Yes; Alarm and cycle indicators on display; Remaining duration display: Yes
• Display languages: IT, EN, DE, FR, PT, RU
• Cycle download: USB pen drive (Yes) / LAN optional
• Electrical: 3N AC 400V - 50Hz (60 Hz on demand); Plug: not present
• Hydraulics: Cold water, Hot water, Demineralized water connections available; Drain pump: Yes; Booster pump for demineralized water: Optional
• Dimensions (WxDxH mm): 900 x 800 x 1950
