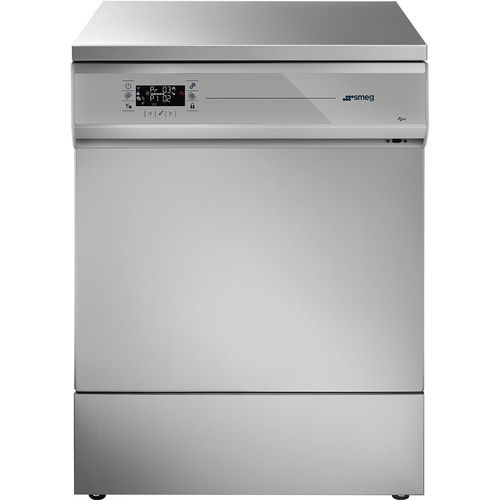

Automatic glassware washer GW4260-SC-000
laboratoryfor the food industryfor the pharmaceutical industry

Automatic glassware washer - GW4260-SC-000 - SMEG Instruments - laboratory / for the food industry / for the pharmaceutical industry
Automatic glassware washer - GW4260-SC-000 - SMEG Instruments - laboratory / for the food industry / for the pharmaceutical industry
Automatic glassware washer - GW4260-SC-000 - SMEG Instruments - laboratory / for the food industry / for the pharmaceutical industry - image - 2
Automatic glassware washer - GW4260-SC-000 - SMEG Instruments - laboratory / for the food industry / for the pharmaceutical industry - image - 3
Automatic glassware washer - GW4260-SC-000 - SMEG Instruments - laboratory / for the food industry / for the pharmaceutical industry - image - 4
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Operational mode
automatic
Applications
laboratory, for the food industry, for the pharmaceutical industry
Technology
thermal, water, dry, water-based detergent

Description

Product overview
  • Glassware washer GW4260-SC-000, 60 cm wide, engineered for laboratory, pharmaceutical and agro-food environments.
  • Intended sectors: Laboratory, Pharmaceutical, Agro-food.


Type
  • Glassware washer 60 cm.
  • Undercounter installation: Yes.


Technical features
  • Working temperature: up to 95 °C.
  • Washing levels: up to 2.
  • Forced hot-air drying system: Yes.
  • HEPA filter: Optional.
  • Door: 1 stainless-steel drop-down door.
  • Washer chamber material: AISI 316L.
  • External material: AISI 304.
  • Chamber with rails: Yes.


Programs
  • Standard programs stored: 20.
  • Modifiable programs: 20.
  • Program editing: Yes.


Electrical connection
  • Electrical connection: 3N AC 400V - 50Hz.
  • Monophase conversion: Yes, with optional kit (WD-EC-1).
  • Convertible to three-phase without neutral: Yes, with optional kit (WD-EC-3).
  • 60 Hz option: Yes, on demand.
  • Plug: Not present.


Hydraulic connection
  • Cold water connection: Yes.
  • Hot water connection: Optional (T4260AC).
  • Demineralized water connection: Yes.
  • Drain pump: Yes.
  • Booster pump for demineralized water: Optional.


Interface and traceability
  • Electronic control: Yes.
  • Alarm indicator: Yes, on the display.
  • Remaining duration display: Yes.
  • End-of-cycle indicator: Yes.
  • Traceability: Last 300 executed programs.
  • Cycle archive: Yes.
  • Download cycle: Optional via LAN / Yes with USB pen drive.


Equipments and dosing
  • Peristaltic pump for liquid neutraliser dosing: Yes.
  • Peristaltic pump for liquid detergent dosing: Yes.
  • Peristaltic pump for caustic soda: Optional.
  • Peristaltic pump for defoamer: Optional.
  • Additional peristaltic pumps: Possible, up to 1.
  • Chemicals dosing control: Optional.
  • Detergent level sensor: Optional.
  • Steam condenser: Yes.
  • Water softener: Yes.
  • Acqua Stop: Optional.
  • Probe passage hole for validation: Optional.


Also available
  • Available versions: GW4260-XX-00G (glass door version).


Logistic information
  • Product dimensions W×D×H (mm): 600×600×850.


Technical specifications
  • Model / series: GW4260 series (GW4260-SC-000).
  • Type: Glassware washer 60 cm.
  • Working temperature: up to 95 °C.
  • Washing levels: up to 2.
  • Door: 1 stainless-steel drop-down door.
  • Washer chamber material: AISI 316L.
  • External material: AISI 304.
  • Forced hot-air drying system: Yes; HEPA filter optional.
  • Undercounter installation: Yes.
  • Standard programs stored / Modifiable programs: 20 / 20.
  • Electrical connection: 3N AC 400V - 50Hz (monophase and three-phase conversions available with optional kits).
  • Water connections: cold (yes), hot (optional T4260AC), demineralized (yes).
  • Pumps: drain pump (yes); booster for demineralized water (optional).
  • Peristaltic pumps: neutraliser (yes), detergent (yes), caustic soda (optional), defoamer (optional); +1 additional possible.
  • Traceability: last 300 executed programs; cycle archive available; cycle download via LAN or USB (optional).
  • Dimensions W×D×H (mm): 600×600×850.
