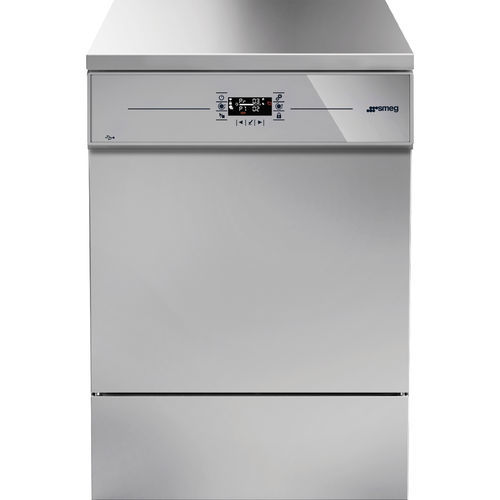

Automatic glassware washer GWF16-SC-000

laboratoryfor the pharmaceutical industrywater-based detergent

Overview
Smeg Glassware washer GWF16-SC-000, designed in Italy, combines refined design and advanced technology for the thorough cleaning of laboratory glassware. Suitable for bottles, flasks, pipettes, vials and other laboratory vessels.

Highlights
Flexible modular system allows the wash chamber to be configured based on shape, size and type of glassware. All modules are interchangeable and can be positioned on either side of each trolley and on both lower and upper levels. Internal space is optimized for mixed loads.

Hydraulic circuit
The hydraulic circuit provides high washing performance through increased flow rate and optimized pressure. Activation of one or more washing levels/modules is configurable to concentrate pressure where required. Lower spray arm features angled nozzles to clean hard-to-reach areas.

Optimized capacity
Chamber layout is optimized to allow simultaneous washing of glassware of different shapes and sizes; 1000 ml bottles can be accommodated on both loading levels simultaneously.

Repositionable upper rack
FlexiLoad system with two identical levels; the upper level is fully reconfigurable at two heights to handle various sizes and loading configurations without additional trolleys or accessories.

Programs

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes

Target sectors

• Life science
• Laboratory; Pharmaceutical; Agro-food; Small Laboratories

Key features (summary)

• Type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Washing levels: up to 2
• Upper level reconfigurable at two different heights
• Door: 1 stainless-steel drop-down door
• Modular system for high loading flexibility
• Undercounter installation: Yes

Construction & Capacity

• External material: AISI 304
• Washer chamber material: AISI 316L
• Chamber capacity (net volume): 152 l
• Chamber with rails: Yes

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using optional kit (WD-EC-1)
• Convertible to tri-phase without neutral: Yes, using optional kit (WD-EC-3)
• 60 Hz possibility: Yes, on demand
• Plug: Not present

Hydraulic connection & water

• Optimized hydraulic circuit with targeted pressure and increased flow rate: Yes
• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demi water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Equipments & Options

• Peristaltic pump for dosing liquid neutraliser: Yes
• Peristaltic pump for dosing liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 1
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam condenser: Yes
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Yes

Interface & Traceability

• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 100 executed programs
• Cycle archive: Yes
• Download cycle: Optional through LAN / Yes with USB pen drive

Also available

• Available versions: GWF16-SC-00G - glass door version

Logistic information
Product dimensions WxDxH (mm): 600x605x850

Caractéristiques / spécifications techniques

• Model: GWF16-SC-000
• Type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Washing levels: up to 2
• Upper level reconfigurable at two heights: Yes
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Chamber net volume: 152 l
• Product dimensions (WxDxH mm): 600x605x850
• Electrical connection: 3N AC 400V - 50Hz (monophase/tri-phase conversion kits available)
• Peristaltic pumps: detergent and neutraliser included; others optional
• Steam condenser: Yes
• Water softener: Yes
• Traceability & archive: Last 100 executed programs; cycle archive; cycle download via LAN/USB
