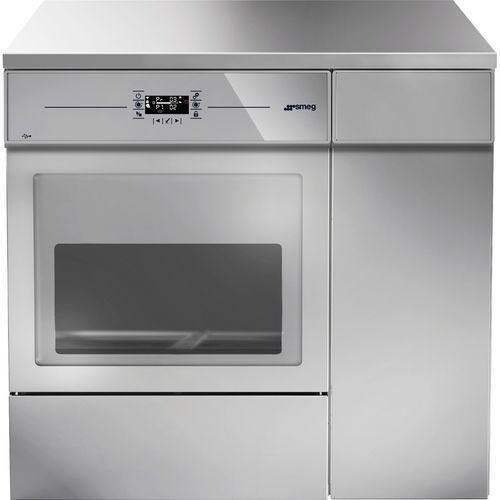

Glassware washer for the pharmaceutical industry GWF29-SC-00G

laboratorydrywater

Summary
Smeg designed in Italy: functional characteristics for laboratory and life-science use, combining ergonomic design and advanced washing/drying technology. The GWF29-SC-00G is configured for flexible loading and high-performance cleaning and drying of glassware.

Highlights / Key features

• FlexiLoad modular system for configurable loading according to shape and size (bottles, flasks, pipettes, vials, etc.)
• Interchangeable modules positionable left or right on each trolley, on lower and upper levels
• Optimized hydraulic circuit for increased flow rate and targeted pressure; selectable washing levels/modules
• Lower spray arm with angled nozzles for effective cleaning of hard-to-reach areas
• Optimized usable chamber space to wash various shapes and sizes simultaneously (e.g., 1000 ml bottles on both levels)
• Upper level reconfigurable at two heights for flexible load management without extra trolleys
• Enhanced forced hot-air drying with 50% increased drying power

Features (text blocks)
Modularity
FlexiLoad modules allow quick reconfiguration of the wash chamber to suit different glassware geometries (bottles, flasks, pipettes, vials). Modules are interchangeable and can be mounted to the right or left of each trolley on both loading levels.

Hydraulic circuit
The hydraulic system is engineered for high-performance washing with improved flow rate and optimized pressure. Selectable activation of washing levels and modules concentrates pressure where required, improving cleaning efficiency and reducing waste. The lower spray arm, equipped with angled nozzles, reaches and cleans difficult areas.

Optimized capacity
The chamber usable volume is designed to accommodate simultaneous washing of different shapes and sizes; for example, 1000 ml bottles can be washed on both loading levels at once.

Repositionable upper rack (FlexiLoad)
The FlexiLoad system provides two identical levels; the upper level is reconfigurable at two heights to handle varied sizes and multiple loading configurations without additional trolleys or accessories.

High-performance washing and drying
Advanced washing and an enhanced forced hot-air drying system deliver faster drying cycles and reduced residues thanks to a 50% increase in drying power.

Product details
Type: Glassware washer 90 cm
Working temperature: Up to 95 °C
Door: Stainless steel door with glass porthole
Washer chamber material: AISI 316L
Product dimensions WxDxH (mm): 900 x 605 x 850
Chamber capacity (net volume): 152 l
Chamber with rails: Yes
External material: AISI 304
Washing levels: up to 2
Upper level reconfigurable at two heights: Yes
Enhanced forced hot-air drying system: Yes
HEPA filter: Optional
Modular system for high loading flexibility: Yes
Undercounter installation: Yes

Programs
Standard programs stored: 20
Modifiable programs: 20
Program editing: Yes
Program editing / traceability: Yes (last 100 executed programs stored; cycle archive available)

Electrical connection
Electrical connection: 3N AC 400V - 50 Hz
Monophase conversion: Yes, using optional kit (WD-EC4290-1)
Convertible to three-phase without neutral: Yes, using optional kit (WD-EC4290-3)
60 Hz possibility: Yes, on demand
Plug: Not present

Hydraulic connection
Optimized hydraulic circuit with targeted pressure and increased flow rate: Yes
Cold water connection: Yes
Hot water connection: Optional (T4260AC)
Demineralized water connection: Yes
Drain pump: Yes
Booster pump for demineralized water: Optional

Interface and traceability
Electronic control: Yes
Alarm indicator: Yes, on display
Remaining duration display: Yes
End of cycle indicator: Yes
Traceability: Last 100 executed programs
Cycle archive: Yes
Download cycle: Optional via LAN / Yes with USB pen drive

Equipments
Peristaltic pump for dosing liquid neutraliser: Yes
Peristaltic pump for dosing detergent: Yes
Peristaltic pump for caustic soda: Optional
Peristaltic pump for defoamer: Optional
Possibility to install additional peristaltic pumps: Yes, up to 2
Chemicals dosing: Optional
Detergent level sensor: Optional
Steam condenser: Yes
Water softener: Yes
Acqua Stop: Optional
Probe passage hole for validation: Yes
Cabinet for detergents: Yes, for 2 canisters of 5 l

Target / Sectors
Instruments Solutions: Life science
Target sectors: Laboratory; Pharmaceutical; Agro-food

Logistic Information
Product dimensions WxDxH (mm): 900 x 605 x 850

Characteristics / Technical specifications

• Model family / name: FlexiLoad (loading system)
• Type: Glassware washer 90 cm
• Working temperature: Up to 95 °C
• Chamber material: AISI 316L
• External material: AISI 304
• Chamber net volume: 152 l
• Washing levels: up to 2
• Dimensions (WxDxH): 900 x 605 x 850 mm
• Electrical: 3N AC 400V - 50 Hz (monophase/tri-phase conversion kits available)
• Programs: 20 standard, 20 modifiable; program editing and traceability (last 100 cycles)
• Drying: Enhanced forced hot-air drying (50% boost)
• Accessories / optional: HEPA filter, booster pump, hot water connection (T4260AC), additional peristaltic pumps, detergent sensors
