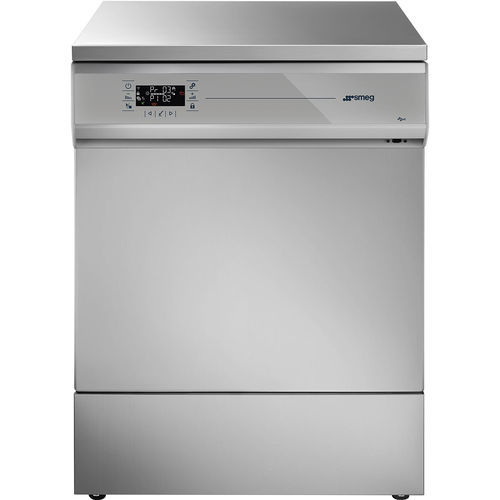

Glassware washer for the food industry GW1260 series

laboratoryfor the pharmaceutical industrywater

Overview
Colour touch display
The GW1260-00-000 is a 60 cm laboratory glassware washer designed for life science and pharmaceutical environments. The colour touch display provides an intuitive daily operation and a compact interface with dedicated programs. An ECO program reduces water and energy consumption compared with standard cycles.

Data logging
USB input enables practical laboratory data recording. Connection to a PC via software supports diagnostics, cycle customization and detailed data analysis.

Main features

• Type: 60 cm glassware washer
• Operating temperature: up to 95 °C
• Door: 1, stainless-steel hinged
• Wash chamber material: AISI 316L
• Product dimensions (W×D×H mm): 600x600x850

Intended use and sectors
Solutions: Life Science. Applicable sectors: Laboratory; Pharmaceutical; Food & Beverage; Small research labs.

Programs

• Stored standard programs: 20
• Editable programs: 20
• Program modification: Yes

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• Convertible to single-phase: Yes, with optional kit (WD-EC-1)
• Convertible to three-phase without neutral: Yes, with optional kit (WD-EC-3)
• 60 Hz option: Yes, on request
• Plug: No

Hydraulic connection

• Cold water inlet: Yes
• Hot water inlet: Optional (T4260AC)
• Deionized water inlet: Yes
• Drain pump: Yes
• Booster pump for deionized water: Optional

Available versions
Available versions include: GW1260-0C-000 (with integrated steam condenser); GW1260-S0-000 (with second peristaltic pump for liquid detergent).

Interface and traceability

• Electronic control: Yes
• Alarm indicator: Yes, on display
• Remaining time display: Yes
• End-of-cycle indicator: Yes
• Traceability: last 300 executed programs
• Cycle archiving: Yes
• Archive download: Optional via LAN / Yes via USB stick

Construction

• Exterior casing material: AISI 304
• Wash chamber material: AISI 316L
• Tank with guides: Yes

Equipment and options

• Powder detergent dispenser: Yes
• Peristaltic pump for neutralizing liquid dosing: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for antifoam: Optional
• Additional peristaltic pumps installable: Yes, max. 1
• Chemical dosing control: Optional
• Detergent level sensor: Optional
• Water softener: Yes
• Water stop: Optional
• Probe pass-through for validation: Optional

Optional / Accessories (examples)

• CS1-1 – Support and basket positioning
• CS2 – Universal washing solution for large items or specific supports
• LM40 – Narrow-neck glassware, number of nozzles: 40
• LM40ICS1 – Narrow and wide-neck glassware, number of nozzles: 35, positions: 40
• LB16 – Solution for narrow-neck bottles and graduated cylinders
• LB4B – Solution for flasks and large bottles, number of nozzles: 4
• LC8M8 – Solution for cylinders, number of nozzles: 16

Technical specifications

• Type: 60 cm glassware washer
• Operating temperature: Up to 95 °C
• Washing levels: up to 2
• Door: 1, stainless-steel hinged
• Under-counter installable: Yes
• Dimensions (W×D×H mm): 600x600x850
• Stored standard programs: 20
• Editable programs: 20
• Program modification: Yes
• Electrical connection: 3N AC 400V - 50Hz
• Convertible to single-phase: Yes (kit WD-EC-1)
• Convertible to three-phase without neutral: Yes (kit WD-EC-3)
• Plug: No
• Cold water inlet: Yes
• Hot water inlet: Optional (T4260AC)
• Deionized water inlet: Yes
• Drain pump: Yes
• Booster pump for deionized water: Optional
• Exterior casing material: AISI 304
• Wash chamber material: AISI 316L
• Tank with guides: Yes
• Powder detergent dispenser: Yes
• Neutralizing peristaltic pump: Yes
• Water softener: Yes
• Traceability: last 300 executed programs
