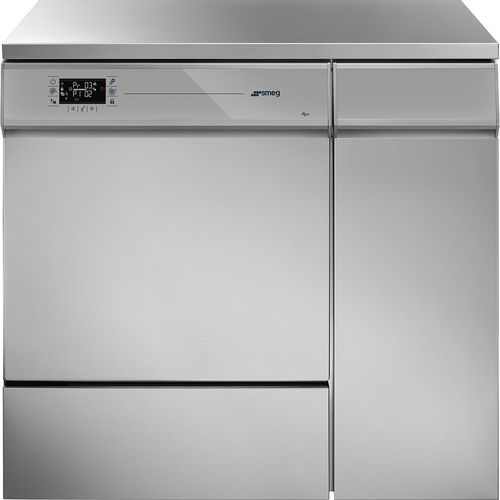

Glassware washer for the food industry GW4290 series

laboratoryfor the pharmaceutical industrydry

Overview
Glassware washers designed by Smeg for laboratory and life science applications. Stainless-steel construction with AISI 316L chamber and AISI 304 external panels. Undercounter installation possible. Forced hot-air drying system included. Product dimensions WxDxH (mm): 900x600x850.

Target
Instruments Solutions: Life science
Life Science sector: Laboratory; Pharmaceutical; Agro-food; Small Laboratories

Type
Glassware washer 90 cm

Technical Features
Working temperature: Up to 95 °C
Washing levels: till 2
Forced hot-air drying system: Yes
HEPA Filter: Optional
Door: 1, stainless-steel drop-down door
Undercounter installation: Yes

Programs
Standard programs stored: 20
Modifiable programs: 20
Program editing: Yes

Electrical Connection
Electrical connection: 3N AC 400V - 50Hz
Monophase conversion: Yes, using ad hoc optional kit (WD-EC4290-1)
Convertible in tri-phase w/o neutral: Yes, using ad hoc optional kit (WD-EC4290-3)
60 Hz Possibility: Yes, on demand
Plug: Not present

Hydraulic connection
Cold water connection: Yes
Hot water connection: Optional (T4260AC)
Demi water connection: Yes
Drain pump: Yes
Booster pump for demineralized water: Optional

Also available
Available versions: GW4290-XX-00G - glass door version

Interface
Electronic control: Yes
Alarm indicator: Yes, on the display
Remaining duration display: Yes
End of cycle indicator: Yes
Traceability: Last 300 executed programs
Cycle Archive: Yes
Download cycle: Optional, through LAN connection / Yes, with USB pen drive

Construction
External material of the machine: AISI 304
Washer Chamber Material: AISI 316L
Chamber with rails: Yes

Equipments

• Peristaltic pump for dosing the liquid neutraliser: Yes
• Peristaltic pump for dosing the liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 2
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam Condenser: Yes
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Optional
• Cabinet for detergents: Yes, for 2 canisters of 5l

Logistic Information
Product dimensions WxDxH (mm): 900x600x850

Optional accessories (selection)

• CS1-1 — Washing functions: Holding of supports and baskets
• CS2 — Universal washing solution to place big dimensions goods or specific supports
• M-CS1DUODS — Washing functions: Holding of supports and baskets
• LM80DS — Washing functions: Narrow-necked glassware, Nozzle number: 68
• LM40ICS1DS — Washing functions: Narrow-necked glassware, Wide-neck glassware, Holding of supports and baskets, Nozzle number: 40
• LB8DS — Washing functions: Big bottles, Nozzle number: 16
• LB16DS — Washing functions: Beakers, Erlenmeyer flasks, Bottles, Nozzle number: 16
• LB4BDS — Washing functions: Erlenmeyer flasks, Big bottles, Nozzle number: 4
• LPM2010DS — Washing functions: Pipettes, Test tubes, Narrow-necked glassware, Nozzle number: 31
• LPM2020DS — Washing functions: Pipettes, Narrow-necked glassware, Nozzle number: 20+20
• KP100DS — Washing functions: Test tubes, Vials, Nozzle number: 104
• KP200DS — Washing functions: Pipettes, Vials, Nozzle number: 208

Caractéristiques / spécifications techniques

• Model code / reference shown on page: GW4290-SC-000
• Denomination / series: GW4290 series
• Type: Glassware washer 90 cm
• Working temperature: Up to 95 °C
• Washing levels: till 2
• Door: 1 stainless-steel drop-down
• Chamber material: AISI 316L
• External material: AISI 304
• Forced hot-air drying: Yes
• HEPA filter: Optional
• Undercounter installation: Yes
• Electrical connection: 3N AC 400V - 50Hz (convertible options available)
• Hot water connection: Optional (T4260AC)
• Drain pump: Yes
• Dimensions WxDxH (mm): 900x600x850
• Programs: 20 standard stored, 20 modifiable, programmable editing and archive/traceability functions
