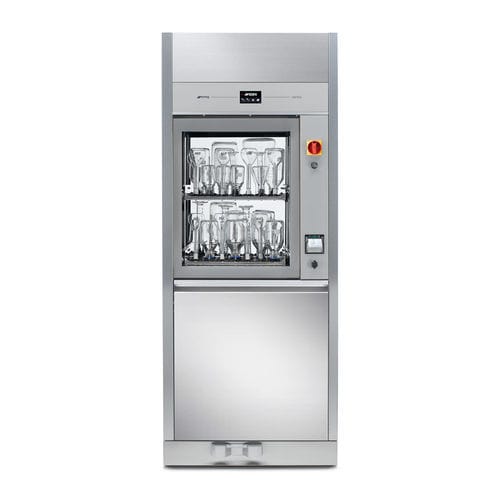

Automatic glassware washer GW7010T

for the food industryfor the pharmaceutical industrylaboratory

Overview
The GW7010T is a glassware washer designed for laboratory and life-science applications. It integrates a colour TFT touch display with intuitive operation, multiple preset and customisable programmes, and a compact interface providing full operating information.

Key features

• Suitable for laboratory, pharmaceutical, petrochemical and agro-food sectors
• Colour TFT touch display for simple daily operation
• 20 preset programs and 20 fully customisable programs
• FAST washing cycles available (max. 33 minutes)
• Forced hot-air drying system
• Large detergent compartment with automatic dosing via peristaltic pumps
• Flexible loading with multiple trolley configurations for long/narrow-necked glassware, pipettes, test tubes and large glassware
• Double sliding door design to prevent cross contamination between dirty and clean zones

Detergent and dosing
The machine includes a detergent compartment that can hold up to three 5‑litre canisters and one 1‑litre canister; some configurations allow up to four 5‑litre canisters and one 1‑litre canister. Two peristaltic pumps are supplied for automatic dosing, with provision to install up to two additional pumps. Optional chemical dosing control and detergent level sensor are available.

Interface and traceability
Electronic control provides alarms on the display, remaining cycle time and end-of-cycle indicator. Traceability for the last 300 executed programs is stored and a cycle archive is available. Cycle download is optional via LAN or via USB pen drive. Display languages include IT, EN, DE, FR, PT, RU.

Loading & construction
Maximum loading flexibility is ensured by a wide choice of trolley configurations to accommodate various laboratory glassware. External material: AISI 304. Washer chamber material: AISI 316L. LED lighting is provided in the washing chamber.

Optional equipment

• HEPA filter
• Booster pump for demineralized water
• Steam condenser
• Water softener
• Conductivity sensor
• Spray arms rotation control
• Waste water separation solenoid valve
• Probe passage hole for validation

Accessories (examples)

• CLB310UNIV – Washing shelves and inserts
• INSPLAV10 – Various glassware supports and baskets
• INS28U6260 – Various glassware (28 nozzles)
• INS12U4180DV – Bottles, narrow-necked glassware (12+6 nozzles)
• INS56U4140 – Bottles and various glassware (56 nozzles)
• INSLP28U4140 – Pipettes and various glassware (28 nozzles)
• INSKP200 – Test tubes and vials (208 nozzles)

Specifications

• Model: GW7010T
• Type: Glassware washer
• Working temperature: Up to 95 °C
• Washing levels: up to 5
• Door: 2 glass sliding doors
• Washer chamber material: AISI 316L
• External material: AISI 304
• Forced hot-air drying system: Yes
• FAST washing cycles: Yes, max. 33 min
• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• HEPA filter: Optional
• Detergent compartment: Up to 3 x 5 L + 1 x 1 L (some versions up to 4 x 5 L + 1 x 1 L)
• Peristaltic pumps supplied: Yes (additional up to 2 optional)
• Drain pump: Yes, only with wall drain
• Booster pump for demineralized water: Optional
• Electrical connection: 3N AC 400V - 50Hz (convertible to three-phase without neutral)
• 60 Hz option: Yes, on request
• Plug: Not present
• Water connections: cold: Yes; hot: Yes; demineralized: Yes
• Product dimensions (WxDxH mm): 780 x 800 x 1950
• Traceability: Last 300 executed programs
• Cycle archive: Yes
• LED lighting in washing chamber: Yes
