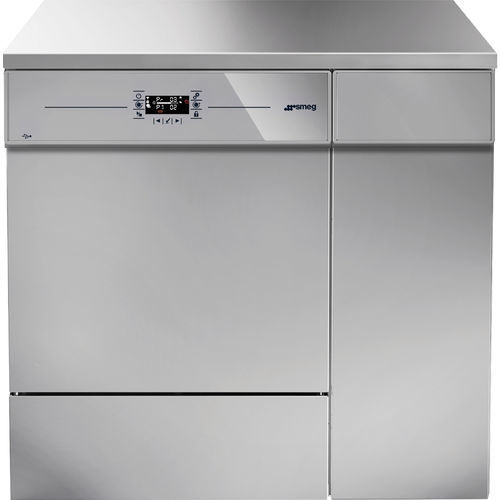

Automatic glassware washer GWF29-SC-000

laboratoryair blastwater

Overview
Glassware washers by Smeg designed in Italy. Type: glassware washer, 90 cm. Working temperature: up to 95 °C. Door: one stainless-steel drop-down door. Washer chamber material: AISI 316L. Product dimensions (WxDxH): 900x605x850 mm. Chamber capacity (net volume): 152 L. Availability: Out of stock.

Highlights

• Modularity: Flexible modules allow configuring the wash chamber for different shapes and sizes (bottles, flasks, pipettes, vials). Modules are interchangeable and can be positioned to the right or left of each trolley at both lower and upper levels to optimise internal space and mixed loads.
• Hydraulic circuit: Optimised circuit for increased flow rate and targeted pressure; washing levels and modules can be activated independently to concentrate pressure where required. Lower spray arm with angled nozzles improves cleaning in hard-to-reach areas.
• Optimized capacity: Usable chamber space permits simultaneous washing of various shapes; 1000 ml bottles can be washed on both loading levels at the same time.
• Repositionable upper rack: Two identical levels; the upper level can be set at two different heights to accommodate different glassware sizes and multiple loading configurations without extra trolleys or accessories.
• High-performance washing and drying: Dedicated washing and enhanced forced hot-air drying system delivering up to 50% increase in drying performance for faster, residue-free results.

Features / Additional information

• Washing levels: up to 2.
• Enhanced forced hot-air drying system: Yes.
• HEPA filter: Optional.
• Modular system for high loading flexibility: Yes.
• Undercounter installation: Yes.
• Standard programs stored: 20; Modifiable programs: 20; Program editing: Yes.
• Program traceability: last 100 executed programs; cycle archive: Yes.
• Download cycle: Optional via LAN; Yes with USB pen drive.

Interface

• Electronic control: Yes.
• Alarm indicator: Yes, on the display.
• Remaining duration display: Yes.
• End of cycle indicator: Yes.
• Traceability: last 100 executed programs.

Electrical & Hydraulic Connections

• Electrical connection: 3N AC 400V - 50Hz.
• Monophase conversion: Yes, using optional kit WD-EC4290-1.
• Convertible to tri-phase without neutral: Yes, using optional kit WD-EC4290-3.
• 60 Hz possibility: Yes, on demand.
• Plug: Not present.
• Optimized hydraulic circuit with targeted pressure and increased flow rate: Yes.
• Cold water connection: Yes. Hot water connection: Optional (T4260AC). Demineralized water connection: Yes.
• Drain pump: Yes. Booster pump for demineralized water: Optional.

Equipments & Accessories

• Peristaltic pump for dosing liquid neutraliser: Yes.
• Peristaltic pump for dosing liquid detergent: Yes.
• Peristaltic pump for caustic soda: Optional.
• Peristaltic pump for defoamer: Optional.
• Possibility to install additional peristaltic pumps: Yes, up to 2.
• Chemicals dosing: Optional. Detergent level sensor: Optional.
• Steam condenser: Yes. Water softener: Yes. Acqua Stop: Optional.
• Probe passage hole for validation: Yes.
• Cabinet for detergents: Yes, for 2 canisters of 5 L.

Also available

• Available version: GWF29-SC-00G - glass door version.

Product code
GWF29-SC-000

Technical specifications

• Type: glassware washer 90 cm
• Working temperature: up to 95 °C
• Washing levels: up to 2
• Upper level reconfigurable at two heights: Yes
• Enhanced forced hot-air drying system: Yes
• HEPA filter: Optional
• Door: 1 stainless-steel drop-down door
• Modular system for high loading flexibility: Yes
• Undercounter installation: Yes
• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes (optional kit WD-EC4290-1)
• Convertible to tri-phase without neutral: Yes (optional kit WD-EC4290-3)
• 60 Hz possibility: Yes, on demand
• Plug: Not present
• Optimized hydraulic circuit with targeted pressure and increased flow rate: Yes
• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demineralized water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional
• External material of the machine: AISI 304
• Washer chamber material: AISI 316L
• Chamber capacity (net volume): 152 L
• Chamber with rails: Yes
• Peristaltic pump for dosing liquid neutraliser: Yes
• Peristaltic pump for dosing liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 2
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam condenser: Yes
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Yes
• Cabinet for detergents: Yes, for 2 canisters of 5 L
• Product dimensions (WxDxH) (mm): 900x605x850
