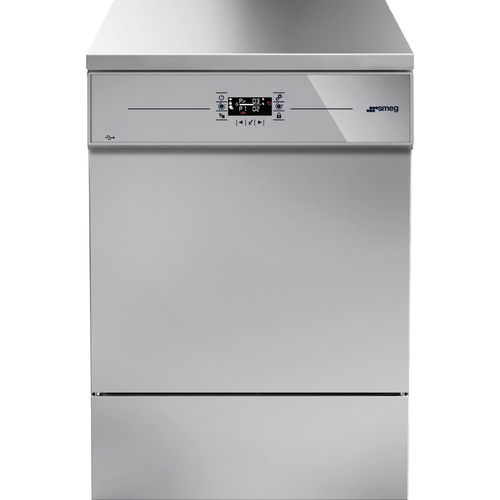

Laboratory glassware washer GWF26-SC-000

air blastwater-based detergentwater

Overview
Smeg, designed in Italy: the laboratory glassware washer GWF26-SC-000 is engineered for life-science and analytical laboratories to wash bottles, flasks, pipettes, vials and mixed glassware loads while ensuring high throughput and traceability.

Highlights

• Modularity: Interchangeable modules configure the wash chamber for different shapes and sizes (bottles, flasks, pipettes, vials). Modules can be positioned left or right on lower and upper trolley levels to optimize space and mixed loads.
• Hydraulic circuit: Optimised circuit increases flow rate and provides targeted pressure. Selective activation of one or more washing levels/modules concentrates pressure where required. Lower spray arm with angled nozzles improves cleaning in hard-to-reach areas.
• Optimized capacity: 152 L usable chamber volume enables simultaneous washing of varied glassware; 1000 ml bottles can be washed on both loading levels at once.
• Repositionable upper rack: Two identical levels with the upper rack reconfigurable at two heights to accommodate different glassware sizes without extra trolleys or accessories.
• High-performance washing and drying: Advanced washing and an enhanced forced hot-air drying system (≈50% increased drying power) deliver ready-to-use glassware with reduced residual moisture.

Technical Features summary
Type: Glassware washer 60 cm
Working temperature: Up to 95 °C
Washing levels: up to 2
Upper level reconfigurable at two different heights: Yes
Enhanced forced hot-air drying system: Yes
HEPA Filter: Optional
Door: 1 stainless-steel drop-down door
Modular system for high loading flexibility: Yes
Undercounter installation: Yes

Programs
Standard programs stored: 20
Modifiable programs: 20
Program editing: Yes

Electrical connection
Electrical connection: 3N AC 400V - 50Hz
Single-phase conversion: Yes, with optional kit WD-EC-1
Convertible to three-phase without neutral: Yes, with optional kit WD-EC-3
60 Hz possibility: Yes, on demand
Plug: Not present

Hydraulic connection
Optimized hydraulic circuit with targeted pressure and increased flow rate: Yes
Cold water connection: Yes
Hot water connection: Optional (T4260AC)
Demineralized water connection: Yes
Drain pump: Yes
Booster pump for demineralized water: Optional

Construction
External material: AISI 304
Washer chamber material: AISI 316L
Chamber capacity (net volume): 152 L
Chamber with rails: Yes
Product dimensions WxDxH (mm): 600x605x850

Equipments
Peristaltic pump for dosing liquid neutraliser: Yes
Peristaltic pump for dosing detergent: Yes
Peristaltic pump for caustic soda: Optional
Peristaltic pump for defoamer: Optional
Possibility to install additional peristaltic pumps: Yes, up to 1
Chemicals dosing: Optional
Detergent level sensor: Optional
Steam condenser: Yes
Water softener: Yes
Acqua Stop: Optional
Probe passage hole for validation: Yes

Interface & Traceability
Electronic control: Yes
Alarm indicator: Yes, on the display
Remaining duration display: Yes
End of cycle indicator: Yes
Traceability: Last 100 executed programs
Cycle archive: Yes
Download cycle: Optional via LAN / Yes, with USB pen drive

Also available
Available versions: GWF26-SC-00G - glass door version

Technical specifications

• Model: GWF26-SC-000
• Type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Chamber capacity (net): 152 L
• Product dimensions (WxDxH mm): 600x605x850
• Washing levels: up to 2
• Upper level reconfigurable at two heights
• Enhanced forced hot-air drying system
• HEPA filter: optional
• Peristaltic pumps: detergent and neutraliser included; caustic and defoamer optional; up to 1 additional pump
• Water softener: Yes; Drain pump: Yes; Demineralized water connection: Yes; Hot water optional (T4260AC)
• Electrical: 3N AC 400V - 50Hz; single-phase/three-phase conversion kits available; 60 Hz on demand
• Programs: 20 standard stored, 20 modifiable, program editing and traceability of last 100 executed programs
• Interfaces: electronic control, display alarm indicator, remaining duration and end-of-cycle indicators; cycle archive and downloadable cycles (LAN/USB)
