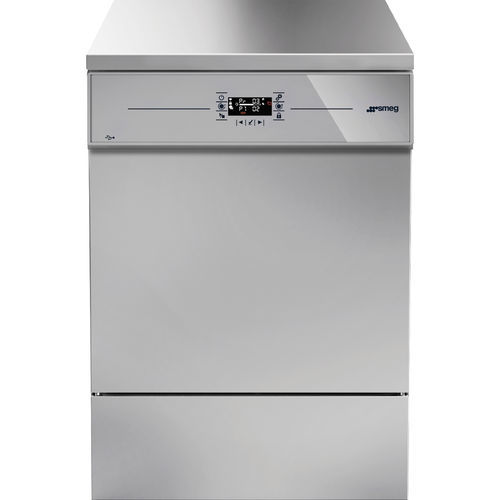

Automatic glassware washer GWF16-00-000
laboratorywaterspray

Automatic glassware washer - GWF16-00-000 - SMEG Instruments - laboratory / water / spray
Automatic glassware washer - GWF16-00-000 - SMEG Instruments - laboratory / water / spray
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Operational mode
automatic
Applications
laboratory
Technology
water, spray
Other characteristics
modular

Description

Overview
  • Laboratory glassware washer GWF16-00-000 for automated cleaning of bottles, flasks, pipettes, vials and similar items. Modular trolley system enables flexible loading configurations for different shapes and sizes.


Highlights / Features
  • Modularity: Interchangeable modules configurable on upper and lower trolley levels to adapt to specific glassware geometries.
  • Hydraulic circuit: Optimised flow and pressure with selective activation of one or more washing levels; lower spray arm with angled nozzles for hard-to-reach areas.
  • Optimized capacity: Chamber layout permits simultaneous washing of mixed items; 1,000 ml bottles can be washed on both loading levels at once.
  • Repositionable upper rack: Two identical levels; upper level adjustable to two heights without extra trolleys.
  • Undercounter installation supported; FlexiLoad modular system for high loading flexibility.


Programs and Interface
  • Standard programs stored: 20
  • Modifiable programs: 20
  • Program editing: Yes
  • Electronic control with display; alarm indicator; remaining time and end-of-cycle indicators; traceability of last 100 executed programs; cycle archive; optional cycle download via LAN or USB pen drive.


Also available
  • Available versions: GWF16-S0-000 (with second dosing pump for liquid detergent); GWF16-0C-000 (with integrated steam condenser).


Construction & Capacity
  • External material: AISI 304
  • Washer chamber material: AISI 316L
  • Chamber capacity (net volume): 152 L
  • Chamber with rails: Yes
  • Product dimensions (WxDxH mm): 600 x 605 x 850
  • Door: 1 stainless-steel drop-down door


Hydraulic & Water Connections
  • Optimised hydraulic circuit with targeted pressure and increased flow rate
  • Cold water connection: Yes
  • Hot water connection: Optional (T4260AC)
  • Demineralized (Demi) water connection: Yes
  • Drain pump: Yes
  • Booster pump for demineralized water: Optional


Equipments & Dosing
  • Powder detergent inlet: Yes
  • Peristaltic pump for dosing liquid neutraliser: Yes
  • Peristaltic pump for dosing liquid detergent: Optional
  • Peristaltic pump for caustic soda: Optional
  • Peristaltic pump for defoamer: Optional
  • Possibility to install additional peristaltic pumps: Yes, up to 1
  • Chemicals dosing: Optional
  • Detergent level sensor: Optional
  • Water softener: Yes
  • Acqua Stop: Optional
  • Probe passage hole for validation: Yes


Electrical
  • Electrical connection: 3N AC 400V - 50Hz
  • Monophase conversion: Yes, using ad hoc optional kit (WD-EC-1)
  • Convertible to tri-phase without neutral: Yes, using ad hoc optional kit (WD-EC-3)
  • 60 Hz possibility: Yes, on demand
  • Plug: Not present


Technical specifications
  • Type: Glassware washer 60 cm
  • Working temperature: Up to 95 °C
  • Washing levels: up to 2
  • Upper level reconfigurable at two heights: Yes
  • Undercounter installation: Yes
  • Modular system (FlexiLoad): Yes
  • Product dimensions (WxDxH mm): 600 x 605 x 850
  • Chamber capacity (net volume): 152 L
  • External material: AISI 304
  • Washer chamber material: AISI 316L
  • Chamber with rails: Yes
  • Standard programs stored: 20
  • Modifiable programs: 20
  • Program editing: Yes
  • Traceability: Last 100 executed programs
  • Cycle archive: Yes
  • Download cycle: Optional via LAN / via USB pen drive
  • Available versions: GWF16-S0-000; GWF16-0C-000
  • Powder detergent inlet: Yes
  • Peristaltic pump for dosing liquid neutraliser: Yes
  • Peristaltic pump for dosing liquid detergent: Optional
  • Water softener: Yes
  • Probe passage hole for validation: Yes
