Contactless automated dispensing system PICO XP

with touch screen

Overview
The PICO XP jetting system’s proprietary self-regulating calibration technology controls for variations in fluid body tolerance to maintain consistent micro-dispensing repeatability from valve-to-valve and after maintenance. Manufacturers sometimes see variation in dispensing performance when there is even a slight change in the tolerance of a jet valve’s internal geometry; the PICO XP addresses these issues to preserve repeatable results.

Key Features

• Self-regulating calibration technology that compensates for fluid body tolerance variation for consistent valve-to-valve repeatability
• Micron (µm) level stroke adjustment and sustained stroke target seeking to maintain long-term dispensing repeatability despite environmental changes
• High-speed jetting capability up to 1000 Hz continuous (deposits per second)
• Can apply micro-deposits as small as 0.5 nL

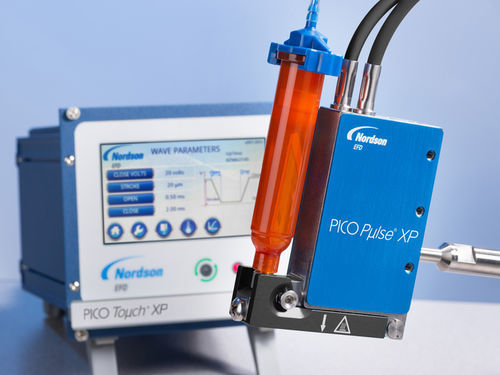

• Includes PICO Pµlse XP jetting valve and PICO Toµch XP controller with intuitive touchscreen interface for simplified setup
• Tool-free latch mechanism for rapid removal of wetted parts to minimize service time and increase production throughput
• Exchangeable, modular fluid body assemblies to support a variety of application requirements
• Available orifice sizes ranging from 50–600 µm in diameter

Applications and Benefits

• Provides extremely precise, repeatable non-contact micro-dispensing across valves and after maintenance
• Reduces variability in deposit weight as jet valve temperatures change
• Supports high-throughput production with fast serviceability and robust long-term repeatability
• Suitable for electronics, medical devices, automotive and other precision micro-dispensing applications

Part Numbers
PICO XP Jetting System
Part # | Description
7366525 | PICO Pµlse XP jet valve
7364877 | PICO Toµch XP controller

Resources
Data sheets and guides available for the PICO Pµlse XP and related documentation (data sheets, operating manuals, declaration of conformity, white paper comparing contact vs. jet dispensing).

Caractéristiques / spécifications techniques

• Jetting technology: Piezoelectric Pµlse XP jet valve
• Controller: PICO Toµch XP touchscreen controller
• Max jetting speed: up to 1000 Hz continuous
• Minimum deposit volume: ~0.5 nL
• Orifice diameter options: 50–600 µm
• Stroke control: Micron (µm) level stroke adjustment with sustained stroke target seeking
• Design: Exchangeable modular fluid body assemblies; tool-free latch for wetted parts
• Primary benefits: Valve-to-valve repeatability, compensation for tolerance and temperature variations, simplified maintenance, increased throughput
