Production coating system Select Coat® SL-1040

floor-standing

Overview

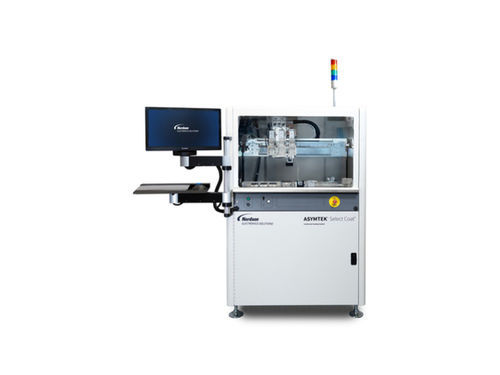

The ASYMTEK Select Coat SL-1040 is a high-throughput conformal coating system designed for selective coating of electronic assemblies. It integrates an ultrasonic cleaning station, advanced valve configurations and ASYMTEK EasyCoat 6 software to maximise uptime, repeatability and first-pass yield.

Key innovations and features
The SL-1040 introduces a programmable Ultrasonic Cleaning Station (patent pending) that removes nozzle and needle-tip build-up by cavitation without mechanical brushing. The cleaning station communicates with a self‑leveling solvent system to maintain solvent level automatically and provide configurable refill notifications and grace periods.

Performance and precision
The platform delivers platform accuracy of approximately ±100 µm and process capability targeting Cmk ≥ 1.67. Integrated laser height sensing and a high‑magnification vision system enable precise keep‑out avoidance and improved selectivity across varied board designs.

Trim packages and application modes
Configurable trim packages are available to optimise performance for specific viscosities and production needs. Supported application modes include:

• Selectivity – dual‑valve toggle and mixed‑valve configurations for minimal masking and tight keep‑out control.
• Productivity – dual‑valve simultaneous coating with programmable pitch for multiple‑up parts and reduced cycle time.
• Precision – laser height sensing, high‑magnification vision and valve combinations for fine feature coating.
• Productivity Plus – dual‑valve simultaneous coating with optional third valve for large area coverage and hard‑to‑reach zones.
• Multi‑Efficiency – triple‑valve solutions to perform multiple coating operations on the same board, including gel‑dam formation.

Ultrasonic cleaning and maintenance
The ultrasonic cleaning station is fully programmable via EasyCoat 6 and can run at operator‑defined times (for example: before idle, at program start, after idle, or periodically). When a valve tip is inserted, the cleaning cycle agitates solvent via high‑frequency pressure waves to remove deposits that static cleaning cannot address, reducing unplanned downtime.

Supported fluids
The system supports low‑viscosity solvent‑based fluids (~25–125 cps) and medium‑viscosity/higher‑solid fluids (~125–1200 cps), depending on trim package and valve selection.

Software and integration
ASYMTEK EasyCoat 6 provides programming, cleaning schedule management and preventive‑maintenance controls. The platform integrates with ASYMTEK applicators such as the SC‑450 PreciseCoat Jet and offers options for flow and viscosity control.

Applications
Designed for conformal coating in high‑volume electronics production where repeatability, first‑pass yield and uptime are critical: selective protection of PCBs, multi‑up coating and mixed‑model lines.

Technical specifications

• Brand: ASYMTEK
• Model: Select Coat SL-1040
• Platform accuracy: ±100 µm (typical)
• Process capability: target Cmk ≥ 1.67
• Ultrasonic Cleaning Station: patent pending; programmable via EasyCoat 6; cavitation cleaning of nozzles/needle tips
• Solvent system: self‑leveling with automatic level management, configurable refill notification and grace period
• Supported viscosity ranges: ~25–125 cps (low‑viscosity solvent); ~125–1200 cps (medium/high solid)
• Valve configurations: dual‑valve, dual‑valve + third valve (triple‑valve)
• Vision and sensing: high‑magnification vision system and laser height sensing
• Productivity features: dual‑valve simultaneous coating, programmable pitch, multiple‑up capability
• Software: ASYMTEK EasyCoat 6; compatible with SC‑450 PreciseCoat Jet and related applicators
