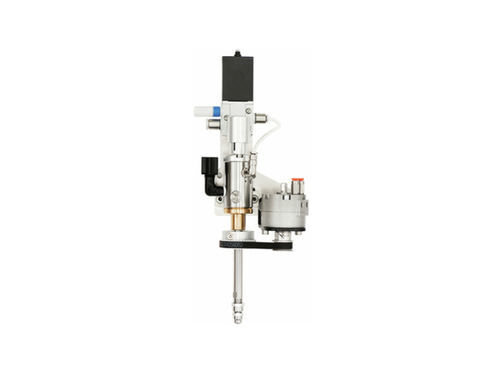

Film coating system ASYMTEK Select Coat SC-280

for productionhigh-speed

Overview
The Select Coat® SC-280 Film Coater combines speed, precision, and process control to maximize coating performance and productivity. High-velocity, non-atomized application delivers superior edge definition and exceptional on/off performance for uniform films with minimal overspray, reducing masking, material consumption, and rework. For higher process stability the SC-280 is available in a circulating configuration with closed-loop temperature management to maintain consistent viscosity and coating quality. The SC-280 is engineered for automated selective application of low-viscosity conformal coatings (below 125 cP) and applies wet film thicknesses from 12.5 to 100 μm (0.5 to 4 mils) for solvent-based materials and 100 to 250 μm (4 to 10 mils) for 100% solids materials.

Precision Meets Productivity
High-speed, non-atomized film coating provides consistent, variable-width coverage with precise edge definition and excellent material utilization.

Key Benefits

• Nearly 100% transfer efficiency, improving material utilization by ~30–50%
• Precise, selective application with excellent edge definition
• High coating speeds (up to 750 mm/sec / 30 in/sec) for rapid throughput
• Reduces overspray, masking, and rework compared with atomized methods
• Stainless-steel fluid path compatible with a wide range of conformal coating chemistries
• Optional tilt accessories improve access to tight or angled surfaces

Ideal Applications

• Automated selective coating of PCBAs with defined pattern zones
• Coating processes where masking is costly or impractical
• Mid- to high-volume production environments
• Low-viscosity conformal coating materials (similar to or slightly thicker than water)

Cost of Ownership, Yield, and Uptime Advantages

• Lower total cost of ownership through reduced masking, overspray, and material waste
• Higher first-pass yield by applying consistent films with sharp edges that respect keep-out zones
• Reduced rework and scrap thanks to predictable, uniform coating application
• Improved throughput with high-velocity film deposition
• Enhanced uptime and reliability via a robust, non-atomized design with process-control capabilities

Supported Systems and Software (examples shown on page)

• ASYMTEK Select Coat SL-940 Conformal Coating System
• ASYMTEK Select Coat SL-1040 Conformal Coating System
• ASYMTEK Vantage Series
• ASYMTEK Forte Series
• ASYMTEK Spectrum II
• ASYMTEK Quantum Q-6800
• MARCH AP Batch Series
• MARCH FlexTRAK Series
• MARCH SPHERE Series
• MARCH VIA Series

Supported Options (examples shown on page)

• ASYMTEK Fifth-Axis Tilt Accessory
• Laser Fan Width Options
• Dual-Simultaneous Bracket
• ASYMTEK EasyCoat Software
• ASYMTEK Viscosity Control System

Characteristics / Technical Specifications

• Designed for low-viscosity conformal coatings: operable below 125 cP
• Wet film thickness (solvent-based): 12.5 – 100 μm (0.5 – 4 mils)
• Wet film thickness (100% solids): 100 – 250 μm (4 – 10 mils)
• Maximum coating speed: up to 750 mm/sec (30 in/sec)
• Nearly 100% transfer efficiency (material utilization improvement ~30–50%)
• Non-atomized, high-velocity film deposition with precise edge definition
• Optional circulating fluid configuration with closed-loop temperature management for viscosity control
• Stainless-steel fluid path compatible with a range of conformal coating chemistries
• Optional tilt/fixturing accessories for angled or constrained geometries
