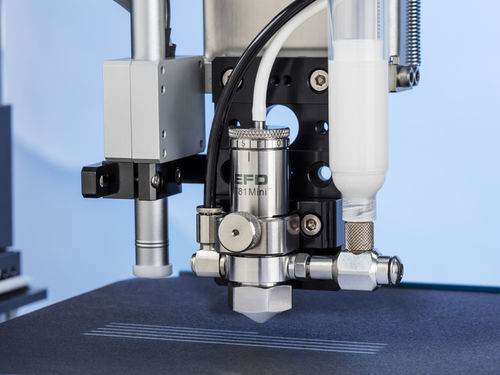

Spray valve 781Mini™

LVLPminiaturecompact

Overview
The 781Mini is an LVLP spray valve designed for precision fluid deposition with consistent spray patterns as narrow as 1 mm (0.04"). Its compact form factor (~60% smaller than conventional spray valves) enables higher valve density on fixture plates and installation in confined or complex manufacturing spaces. The enhanced nozzle improves pattern uniformity and edge definition, while a patented QR (quick-release) clasp allows valve service in seconds.

Features

• Uniform spray patterns with precise edge definition
• Consistent area coverage down to 1 mm (0.04") width
• Approximately 60% smaller form factor than conventional spray valves
• High transfer efficiency with minimal or no overspray
• Modular design to reduce total cost of ownership
• Patented QR quick-release for rapid maintenance

Compatible Fluids

• Activators
• Coatings
• Light greases
• Oils
• Inks
• Liquid fluxes
• Solvents
• Silicone oils

Part Numbers (table)
Part # — Description — Specification
7364002 — 781Mini 0.01" Valve — 0.254 mm (0.01") nozzle orifice. Round pattern, narrow angle.
7362301 — 781Mini 0.03" Valve — 0.76 mm (0.03") nozzle orifice. Round pattern.

Technical specifications

• Technology: Low Volume Low Pressure (LVLP)
• Minimum spray width: 1 mm (0.04")
• Nozzle orifice options: 0.254 mm (0.01") and 0.76 mm (0.03")
• Pattern type: round, narrow angle (depends on nozzle)
• Form factor: ~60% smaller than conventional spray valves
• Serviceability: patented QR quick-release clasp for rapid servicing
• Typical system integration: compatible with ValveMate controllers and fluid reservoirs for automated dispensing systems
