Micro-dispensing valve ASYMTEK Select Coat®

fluid dispensingspraymanual

Overview

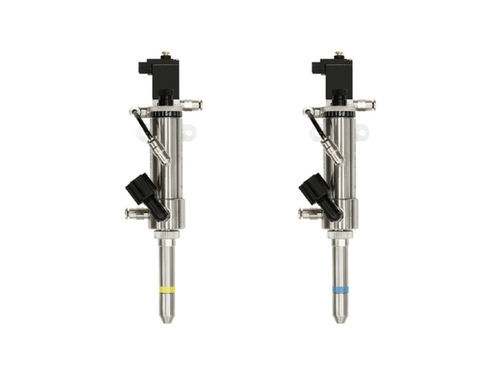

The Select Coat® Valve Series (SC-300 Multi-Mode and SC-350 Select Spray) is fully compatible with Select Coat® SL-940 and SL-1040 conformal coating systems and EasyCoat® software. The valves provide precise, repeatable selective coating and spray performance for demanding conformal coating applications.

SC-300 Multi-Mode Valve
One valve with three programmable coating modes to address spot, wide-pattern and ultra-thin film applications without hardware change.

• Bead Mode: Precise spot/bead application for discrete components and tight keep-out areas.
• Monofilament Mode: Generates wide coating patterns with clean edges for accurate broad coverage.
• Swirl Mode: Produces extremely thin film builds with moderate selectivity.

SC-350 Select Spray Valve
Designed for selective spray of higher-viscosity materials while maintaining edge control and reduced stringing.

• Tight edge tolerances to avoid keep-out zones.
• Minimizes cobwebbing with solvent-based fluids.
• Enables thin, uniform coatings at higher line speeds across a wide viscosity range.

Advanced Process Capabilities

• Dual simultaneous manual and programmable pitch: coat two parts in parallel to increase throughput; electronic pitch control with sensors and encoder feedback enables automated, repeatable adjustments and per‑product pitch settings.
• Four-position tilt: automatic shifting between vertical and four 30° tilt angles (right, left, forward, backward) for improved access and coverage of complex assemblies; tilt and rotation fully programmable.

Cost of Ownership, Yield, and Uptime Advantages

• SC-300 covers three coating modes in a single valve, reducing hardware changeover and inventory of multiple valves.
• SC-350 optimizes thin-film spray and reduces cobwebbing, improving coating quality.
• Excellent edge definition and high selectivity near keep-out zones reduce defects, rework and scrap, and improve first-pass yield.
• Parallel coating capability can reduce cycle times by up to ~50% under appropriate conditions.
• Automated pitch, rotation and tilt reduce operator adjustments and changeover time, increasing uptime.
• High-speed coating across a broad material range improves throughput.

Supported Systems

• Compatible with ASYMTEK Select Coat SL-940 conformal coating system.
• Compatible with ASYMTEK Select Coat SL-1040 conformal coating system.
• Integrates with EasyCoat® software for process control and program management.

Supported Options

• EasyCoat® software integration.
• Dual-simultaneous bracket for parallel coating.
• Four-position tilt accessory for enhanced access and coverage.

Technical specifications / Key characteristics

• Product family: Select Coat® Valve Series (SC-300 Multi-Mode, SC-350 Select Spray).
• Compatibility: Designed for integration with Select Coat SL-940 and SL-1040 systems and EasyCoat® software.
• SC-300 modes: Bead, Monofilament, Swirl — programmable for spot, wide-pattern and ultra-thin-film applications.
• SC-350: Engineered for higher-viscosity materials; provides tight edge control and reduced stringing with solvent-based fluids.
• Pitch control: Dual simultaneous manual and programmable pitch; electronic pitch control with sensors and encoder feedback; programmable pitch per product.
• Tilt/rotation: Four-position tilt (vertical + four 30° tilts); fully programmable tilt and rotation for complex assemblies.
• Process benefits: High selectivity, improved first-pass yield, reduced rework/scrap; parallel coating can reduce cycle times up to ~50% depending on application.
• Application focus: Precision conformal coating requiring accuracy near keep-out zones, thin-film builds and clean selective spray for a wide range of materials.
