Ceiling-mounted surgical light SX-500

LEDfor operating rooms220V / 50Hz

Product overview

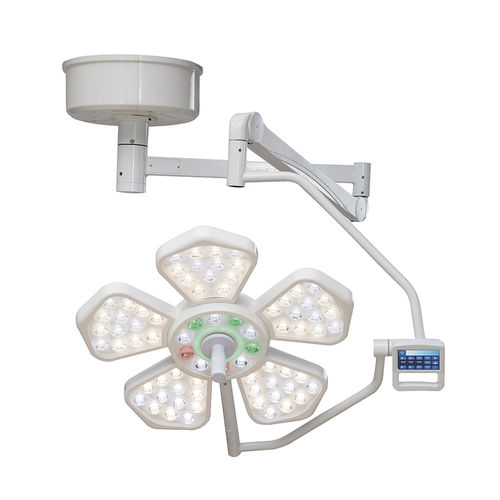

The SX-500 ceiling-mounted LED surgical light (listed as LED 500) is designed for operating rooms requiring laminar flow compatibility and precise shadow control. The petal-shaped 500 mm head provides uniform illumination for various surgical sites while minimizing heat at the surgeon’s head.

Key features

• Fully enclosed, streamlined housing suitable for laminar flow purification and OR sanitation.
• Stable positioning with no drift; 360° rotating arm for flexible positioning.
• Long-life LED cold light source — average life ≥50,000 h; no bulb replacement required.
• Cold-light design with no infrared or ultraviolet emission; minimal temperature rise at surgeon’s head <1℃.
• Intuitive touch control for quick adjustment during procedures.
• Adjustable color temperature from 3700K to 5000K to support diagnosis and reduce visual fatigue.

Technical parameters
Model: LED 500
LED lamp beads qty: 65
Illuminance (Lux): 40000—160000
Color Temperature (K): 3700—5000 (adjustable)
Spot Diameter (mm): 150—300
Color Rendering Index (CRI): ≥96
Irradiation depth (mm): ≥1200
Brightness Adjustment Digital Display: 1%—10%
Power supply and voltage: ~220V/50Hz (110V optional)
Input power (W): 35W
Temperature at surgeon's head: <1℃
LED average life: ≥50000 h
Recommended installation height: 2.8—3.2 m

Standard configuration

• 1 × Lampholder (set)
• 2 × Disinfection handle (pcs)
• 65 × Lamp beads (pcs)
• 1 × Balancer (set)
• 1 × Rotating arm (set)
• 1 × Switch power supply assembly (set)
• 1 × Fixed base (set)
• 1 × Shield (set)
• 1 × Light tools (set)
• 1 × Operating manual (set)

Technical specifications

• Model (product): SX-500
• Model (technical listing): LED 500
• Brand: Suxin Medical
• Code: 9405429000
• LED lamp beads quantity: 65
• Illuminance: 40000—160000 Lux
• Color temperature: 3700—5000 K (adjustable)
• Spot diameter: 150—300 mm
• Color Rendering Index (CRI): ≥96
• Irradiation depth: ≥1200 mm
• Brightness adjustment range: 1%—10% (digital display)
• Power supply: ~220V/50Hz (110V optional)
• Input power: 35 W
• Temperature rise at surgeon's head: <1℃
• LED average life: ≥50000 h
• Recommended installation height: 2.8—3.2 m
