LED surgical light SX-II 3

for operating rooms220V / 50Hz96

Product overview

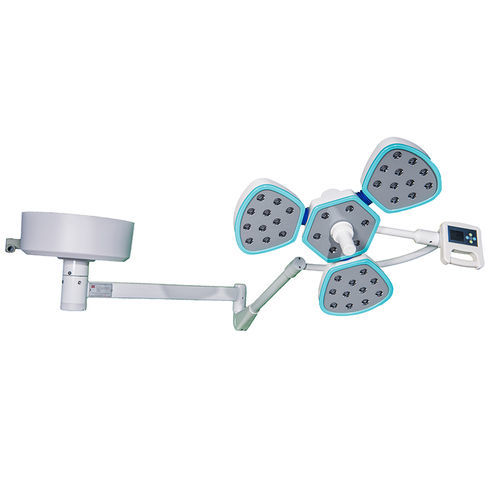

The SX‑II 3 petal‑type LED surgical shadowless operating lamp (Model LED3) is designed for operating rooms requiring laminar flow purification. It features a fully enclosed, streamlined housing and a six‑joint suspension for stable, drift‑free positioning and 360° rotating arm for flexible coverage.

Key features

• Fully enclosed, streamlined design suitable for laminar flow and surgical hygiene.
• Six‑joint suspension system for stable natural positioning and 360° arm rotation.
• LED cold lighting without infrared or ultraviolet radiation; surgeon head temperature rise <1°C.
• Long LED life ≥80,000 h; bulbs do not require replacement.
• Adjustable color temperature 3700K–5000K to support accurate tissue differentiation and reduce visual fatigue.
• High CRI (≥96) and lens optics for a uniform, high‑brightness light column with deep penetration.
• LCD button control with digital memory for illumination level and color temperature; brightness adjustable 1%–100%.

Technical parameters

• Model: LED3
• LED quantity: 39
• Illuminance: 30,000–160,000 Lux
• Color temperature: 3700–5000 K (adjustable)
• Spot diameter: 150–350 mm
• Color rendering index (CRI): ≥96
• Irradiation depth: ≥1200 mm
• Brightness adjustment: 1%–100% (digital display)
• Input power: 220 W; Power supply: 220 V / 50 Hz
• Temperature rise at surgeon's head: <1°C
• LED average life: ≥80,000 h
• Recommended installation height: 2.8–3.0 m

Configuration

• 1 Lampholder — 1 set
• 2 Disinfection handle — 2 pcs
• 3 Lamp beads — 39 pcs
• 4 Balancer — 1 set
• 5 Rotating arm — 1 set
• 6 Switch power supply assembly — 1 set
• 7 Fixed base — 1 set
• 8 Shield — 1 set
• 9 Light tools — 1 set
• 11 Guarantee — 1 set
