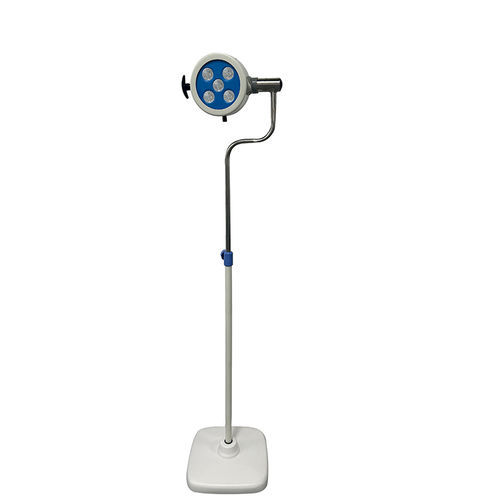

Minor precision surgery examination lamp SX-200

diagnosticLEDmobile

Product name
Minor LED Medical Exam Light — Mobile Portable Lamp (Model: SX-200 / LED 200)

Product brief
Compact mobile LED exam light designed for minor procedures and clinical examinations; portable and suitable for use in consultation rooms and mobile units.

Product Description
Unique features:
1. Fully enclosed, streamlined housing compatible with laminar flow purification and operating room sanitation requirements.
2. Stable, drift-free positioning with 360° rotating arm for flexible targeting of illumination on different examination sites.
3. Cold LED light source with average life ≥50,000 h, eliminating the need for frequent bulb changes and reducing operating costs.
4. Cold lighting design (Germany) with no infrared or ultraviolet radiation; minimal heat at the clinician's head.
5. Adjustable color temperature to improve diagnostic accuracy and reduce visual fatigue.

Technical parameter
Model: LED 200
LED lamp beads qty: 5
Illuminance (Lux): 0–5000
Color Temperature (K): 3700–5500 (adjustable; spec sheet lists 3700–5000 adjustable)
Spot Diameter (mm): 100–250
Color Rendering Index (CRI): ≥90
The depth of the irradiation (mm): ≥1200
Brightness Adjustment type: Knob button type
Power supply and voltage: ~220V/50Hz (110V optional)
Input power (W): 35W
Temperature at surgeon's head: <1℃
LED average life: ≥50,000 h

Configuration
1. Lampholder — QTY: 1 — Unit: set
2. Lamp beads — QTY: 5 — Unit: pcs
3. Rotating arm — QTY: 1 — Unit: set
4. Fixed base — QTY: 1 — Unit: set
5. Shield — QTY: 1 — Unit: set
6. Light tools — QTY: 1 — Unit: set
7. Operating manual — QTY: 1 — Unit: set

Product specifics

• Model: SX-200
• Brand: Suxin Medical
• Code: 9405429000

Technical specifications

• Model designation: LED 200 (product variant)
• Commercial model: SX-200
• Brand: Suxin Medical
• LED lamp beads quantity: 5
• Illuminance range: 0–5000 Lux
• Adjustable color temperature: 3700K–5500K (spec page lists 3700–5000K adjustable)
• Spot diameter: 100–250 mm
• Color Rendering Index (CRI): ≥90
• Irradiation depth: ≥1200 mm
• Brightness adjustment: Knob button type
• Power supply / voltage: ~220V/50Hz (110V optional)
• Input power: 35 W
• Temperature rise at surgeon's head: <1℃
• LED average lifetime: ≥50,000 h
• Design: Fully enclosed structure, streamlined for laminar flow purification environments
• Arm rotation: 360° rotating arm, portable and flexible
• Light type: Cold LED lighting with no IR/UV radiation
• Package / configuration items: lampholder, lamp beads, rotating arm, fixed base, shield, light tools, operating manual
