Ceiling-mounted surgical light SX-II 5/3LEDveterinarydental
Add to favorites
Compare this product
Characteristics
- Configuration
- ceiling-mounted
- Light source
- LED
- Applications
- dental, veterinary, for operating rooms, general medicine, dermatology, gynecology
- Number of arms
- 3-arm
- Power source
- 220V / 50Hz, 110V / 60Hz, 230V / 50Hz
- Color rendering index
- 96
- Options
- with control panel, with video camera, with video monitor, with battery, with axial motion, with angular motion
- Power
130 W
- Intensity at 1 m
Max.: 160,000 lx
Min.: 40,000 lx
- Color temperature
Max.: 5,000 K
Min.: 3,700 K
- Lifetime of bulbs
60,000 h, 100,000 h
Description
Product overview
Key features
Technical specifications
Configuration (standard)
Product specifics

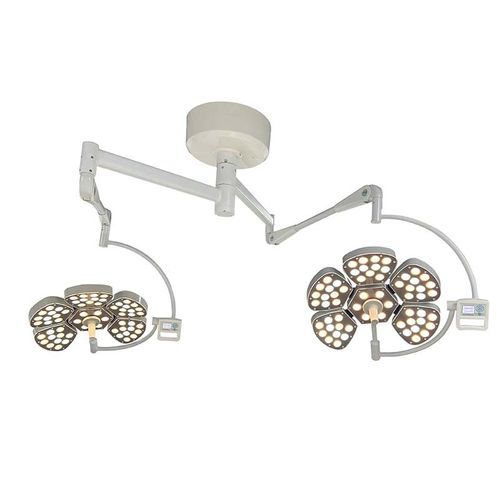

- Ceiling-mounted dual-dome surgical LED light, model SX-II 5/3 by Suxin, developed for operating rooms requiring laminar flow purification and strict hygiene.
Key features
- Fully enclosed and streamlined housing to meet laminar flow and sanitation requirements.
- Six-joint suspension system for stable, natural positioning with no drift; rotating arm provides 340° rotation for flexible placement.
- LED cold-light technology with minimal infrared/ultraviolet emission; temperature rise at surgeon's head <1°C.
- Adjustable color temperature 3700–5000 K to support tissue differentiation and reduce visual fatigue.
- Each LED fitted with refractive lens and optimized optical layout to deliver a uniform, high-brightness light column and deep illumination.
- Digital brightness control with 1%–100% adjustment; optional button-type control panel and endoscope control mode.
Technical specifications
- Model: SX-II 5/3
- Brand: Suxin
- LED count: 100 pcs
- Illuminance: 40000–160000 Lux
- Color temperature: 3700–5000 K (adjustable)
- Spot diameter: 150–300 mm
- Color Rendering Index (CRI): ≥96
- Irradiation depth: ≥1200 mm
- Brightness adjustment: 1%–100% (digital display)
- Power supply & voltage: ~220V/50Hz (110V optional)
- Input power: 130 W
- Temperature rise at surgeon's head: <1°C
- LED average life: ≥60000 h
- Recommended installation height: 2.8–3.2 m
Configuration (standard)
- 1. Lampholder — 1 set
- 2. Disinfection handle — 2 pcs
- 3. Lamp beads — 100 pcs
- 4. Balancer — 1 set
- 5. Rotating arm — 1 set
- 6. Switch power supply assembly — 1 set
- 7. Fixed base — 1 set
- 8. Shield — 1 set
- 9. Light tools — 1 set
- 10. Operating manual — 1 set
- 11. Guarantee — 1 set
Product specifics
- Model: SX-II 5/3
- Brand: Suxin
- HS Code: 9405429000
