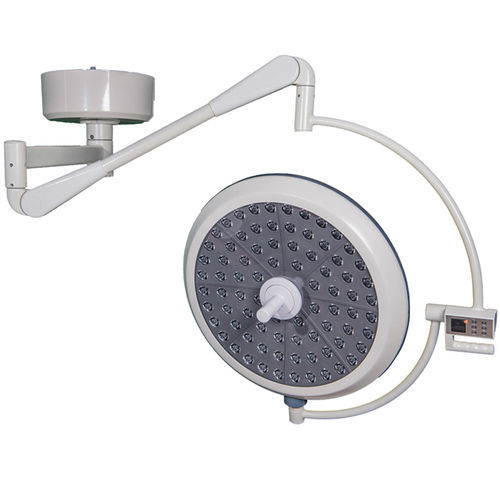

Ceiling-mounted surgical light 9405429000

LEDfor operating rooms220V / 50Hz

Product overview
The SX-II 700 is a ceiling-mounted shadowless LED operating light designed for surgical environments. Manufactured by Jiangsu Suxin Medical Equipment Co., Ltd., the unit delivers stable, high-intensity illumination with adjustable color temperature and long LED life for a range of procedures.

Key features

• Fully enclosed, streamlined head design compatible with laminar flow and OR sanitation requirements.
• Six-joint suspension system with friction-balanced positioning (no drift); rotating arm provides 340° rotation for flexible placement.
• Long-life LED source (≥80,000 h) eliminating frequent bulb changes and reducing operating costs.
• Cold light design without infrared or ultraviolet radiation; minimal temperature rise at the surgeon's head (<1℃).
• Endoscope-compatible control mode and humanized surface design to suit varied surgical lighting needs.
• Adjustable color temperature from 3,700 K to 5,000 K to enhance tissue differentiation and reduce visual fatigue.
• Each LED paired with a refracting lens and optimized optical layout to ensure uniform, deep-focused illumination.
• Uniform light column and high brightness for soft, even field and deep penetration required in major surgeries.
• Optional button-type control panel for straightforward intensity and mode adjustments.

Technical parameters

• Model: SX-II 700
• Brand: Suxin
• Illuminance range: 40,000–180,000 Lux
• Color temperature: 3,700–5,000 K (adjustable)
• Color Rendering Index (CRI): ≥96
• Spot diameter: 150–300 mm
• Depth of irradiation: ≥1,200 mm
• Brightness adjustment: 1%–100% (digital display)
• Input power: 150 W
• Power supply: ~220V/50Hz (110V optional)
• LED average life: ≥80,000 hours
• Temperature at surgeon's head: <1℃
• Recommended installation height: 2.8–3.2 m

Configuration

• Lampholder — 1 set
• Disinfection handle — 2 pcs
• LED lamp beads — 80 pcs
• Balancer — 1 set
• Rotating arm — 1 set
• Switch power supply assembly — 1 set
• Fixed base — 1 set
• Shield — 1 set
• Light tools — 1 set
• Operating manual — 1 set
• Guarantee — 1 set

Installation & use notes

• Recommended ceiling installation height: 2.8–3.2 m for optimal illumination field and depth.
• Adjust color temperature and brightness according to procedure type to improve tissue contrast.
• Periodic cleaning of the enclosed head and verification of suspension balance recommended to maintain laminar flow compatibility and positioning stability.
• Optional control panel and endoscope mode improve ergonomics and in-procedure adjustments.
