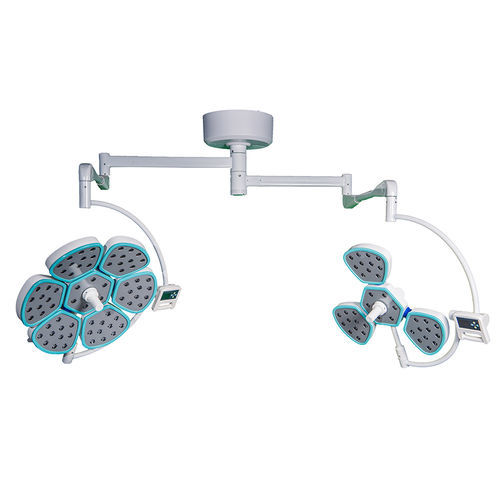

Ceiling-mounted surgical light SX-II 6/3

LEDveterinarydental

Product Overview

• Petal-type ceiling-mounted LED surgical light for operating rooms, veterinary and dental surgeries.
• Fully enclosed housing and streamlined design to meet laminar-flow purification and sanitation requirements.
• Six-joint suspension with 340° rotating arm for stable, drift-free and flexible positioning.
• LED cold-light source with up to 80,000 h life, reducing lamp replacements and lifecycle costs.
• German cold-light technology: no infrared or ultraviolet radiation, minimizing temperature rise at the surgeon's head (<1℃).
• Humanized handle and endoscope-control mode to support diverse surgical procedures.
• Adjustable color temperature 3700–5500K to improve tissue differentiation and reduce visual fatigue.
• Each LED with individual lens and optimized optical layout for uniform, high-brightness illumination and deep surgical field penetration.

Product details
Model: SX-II 6/3
Brand: Suxin Medical
Code: 9405429000

Technical parameters
Model: LED6/3
LED lamp beads qty: 72/39
Illuminance (Lux): 40000—180000; 34000—140000
Color Temperature (K): 3700—5500 (adjustable)
Spot Diameter (mm): 150–300 / 150–300
Color Rendering Index (CRI): ≥96
Depth of irradiation (mm): ≥1200
Brightness adjustment (digital display): 1% ~ 100%
Power supply / Voltage: ~220V/50Hz (110V optional)
Input power (W): 35W
Temperature rise at surgeon's head: <1℃
LED average life: ≥80000 h
Recommended installation height: 2.8–3.2 m

Configuration
No - Item Name - QTY - Unit - Remark
1 - Lampholder - 2 - sets -
2 - Disinfection handle - 4 - pcs -
3 - Lamp beads - 111 - pcs -
4 - Balancer - 2 - sets -
5 - Rotating arm - 1 - set - Double arms
6 - Switch power supply assembly - 2 - sets -
7 - Fixed base - 1 - set -
8 - Shield - 1 - set -
9 - Light tools - 1 - set -
10 - Operating manual - 1 - set -

Features / Technical specifications

• Type: Petal-type ceiling-mounted surgical light
• Suspension: Six-joint, 340° rotating arm for flexible positioning
• Light source life: ≥80,000 hours
• Adjustable color temperature: 3700K–5500K
• Max illuminance: up to 180,000 Lux
• CRI: ≥96
• Power input: 35 W
• Recommended installation height: 2.8–3.2 m
