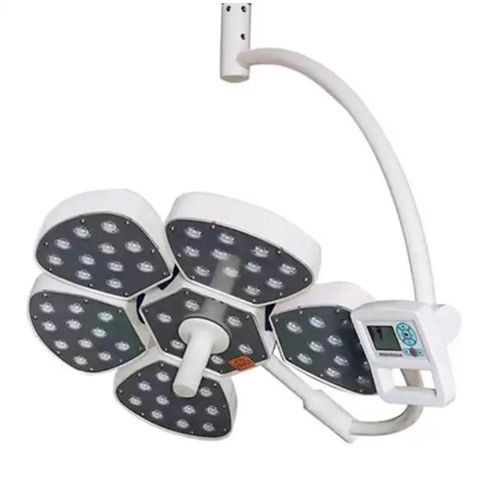

Ceiling-mounted surgical light SX-II 5
LEDfor operating rooms220V / 50Hz

Ceiling-mounted surgical light - SX-II 5 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz
Ceiling-mounted surgical light - SX-II 5 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz
Ceiling-mounted surgical light - SX-II 5 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz - image - 2
Ceiling-mounted surgical light - SX-II 5 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz - image - 3
Ceiling-mounted surgical light - SX-II 5 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz - image - 4
Ceiling-mounted surgical light - SX-II 5 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz - image - 5
Ceiling-mounted surgical light - SX-II 5 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz - image - 6
Ceiling-mounted surgical light - SX-II 5 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz - image - 7
Ceiling-mounted surgical light - SX-II 5 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz - image - 8
Add to favorites
Compare this product
Go to the Jiangsu Suxin Medical Equipment website for more information

Characteristics

Configuration
ceiling-mounted
Light source
LED
Applications
for operating rooms
Power source
220V / 50Hz, 110V / 60Hz
Color rendering index
96
Options
with control panel
Power

100 W
(0.14 hp)

Intensity at 1 m

Max.: 140,000 lx

Min.: 40,000 lx

Color temperature

Max.: 5,000 K

Min.: 3,700 K

Description

Product Description
  • Fully enclosed structure and streamlined design meet laminar flow purification and sanitation requirements for operating rooms.
  • Professionally designed six-joint suspension system provides stable, natural positioning without drift; rotating arm rotates 340° for flexible positioning to illuminate different surgical sites.
  • LED cold light source with long service life (up to 80,000 h) reduces lamp replacements and improves operating economy and environmental performance.
  • Novel cold lighting technology eliminates infrared and ultraviolet radiation, preventing temperature rise at the surgeon's head.
  • Humanized surface design with endoscope control mode to satisfy various surgical lighting needs.
  • Adjustable color temperature from 3700K to 5000K to support diagnostic accuracy and reduce visual fatigue.
  • Each LED features individual lens refraction and a dedicated optical system; the optical layout ensures reliable and advanced optical parameters.
  • LED lamp holder produces a uniform light column with high brightness for soft, even illumination and deep light penetration, meeting high-brightness and deep-illumination requirements.
  • Optional button-type control panel available.


Technical parameters
  • Model: SX-II 5
  • Brand: Suxin
  • Code: 9405429000
  • LED lamp beads qty: 61 PCS
  • Illuminance (Lux): 40,000 – 140,000
  • Color Temperature (K): 3700 – 5000 (adjustable)
  • Spot Diameter (mm): 150 – 300
  • Color Rendering Index (CRI): ≥96
  • Depth of irradiation (mm): ≥1200
  • Brightness adjustment (digital display): 1% – 100%
  • Power supply / Voltage: ~220V/50Hz (110V optional)
  • Input power (W): 100 W
  • Temperature rise at surgeon's head: <1℃
  • LED average life: ≥60,000 h
  • Recommended installation height: 2.8 – 3.2 m


Configuration
  • Lampholder — 1 set
  • Disinfection handle — 2 pcs
  • Lamp beads — 61 pcs
  • Balancer — 1 set
  • Rotating arm — 1 set
  • Switch power supply assembly — 1 set
  • Fixed base — 1 set
  • Shield — 1 set
  • Light tools — 1 set
  • Operating manual — 1 set
  • Guarantee — 1 set


Features / Technical specifications
  • Model: SX-II 5
  • Brand: Suxin
  • HS Code: 9405429000
  • LED quantity: 61 PCS
  • Illuminance: 40,000 – 140,000 Lux
  • Color temperature: 3700K – 5000K (adjustable)
  • Spot diameter: 150 – 300 mm
  • CRI: ≥96
  • Irradiation depth: ≥1200 mm
  • Brightness adjustment: 1% – 100% (digital display)
  • Power supply: ~220V/50Hz (110V optional)
  • Input power: 100 W
  • Surgeon head temperature rise: <1℃
  • LED average lifetime: ≥60,000 h
  • Recommended installation height: 2.8 – 3.2 m
