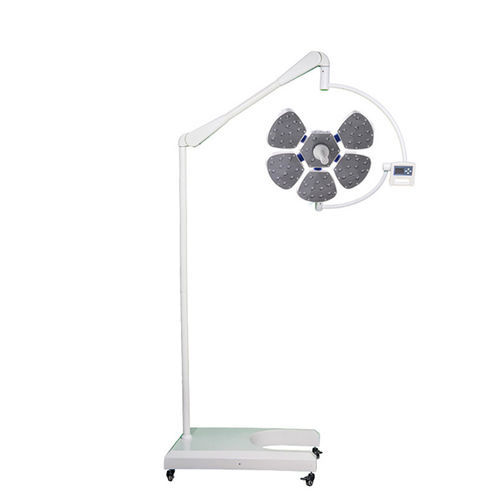

Mobile surgical light SX-II 5L

LEDveterinarydental

Product overview

• Mobile LED operating light designed for surgical procedures on a portable stand. Fully enclosed, streamlined housing with a high-definition rippled PC panel that is shock- and heat-resistant. CAD/CAM-designed reflector system delivers focused illumination depth up to ≥1200 mm and minimizes shadows for complex operations.
• Micro-computer digital control with eight-step dimming and 100 levels of brightness adjustment. Main and standby LED bulbs allow automatic switchover within 0.2 s. Features brightness memory, wide voltage tolerance, strong EMI resistance and soft-start. Detachable disinfection handle is sterilizable at ≤134℃. Six-joint arm provides smooth movement and stable positioning for various heights and angles.

Technical parameters
Illuminance: 35000-120000 lx
Color temperature (K): 4300 ±500 K
Spot diameter (mm): 150-300 (adjustable)
Irradiation depth (mm): ≥1200
Brightness adjustment levels: 100
Surgeon head temperature rise: ≤1℃
Power supply: 220 V 50 Hz
Bulb power: 45 W
Color rendering index (CRI): ≥97%

Configuration

• 650 mm lamp dome: 1 set
• Disinfection handle: 2 pcs
• LED Osram bulbs: 48 pcs
• Spring arm: 1 set
• Fixed base: 1 set
• Shield: 1 set
• Light tools: 1 set
• Operating manual / warranty card: 1 set

Product Specifics

• Model: SX-II 5L
• Brand: Suxin
• Code: 9405429000

Specifications

• Illuminance: 35000-120000 lx
• Color temperature: 4300 K ±500 K
• Spot diameter: 150-300 mm (adjustable)
• Irradiation depth: ≥1200 mm
• Brightness adjustment: 100 levels
• Surgeon head temperature rise: ≤1℃
• Power supply: 220 V 50 Hz
• Bulb power: 45 W
• CRI: ≥97%
• Included: 650 mm lamp dome, disinfection handles, 48 Osram LEDs, spring arm, fixed base, shield, light tools, operating manual/warranty card
