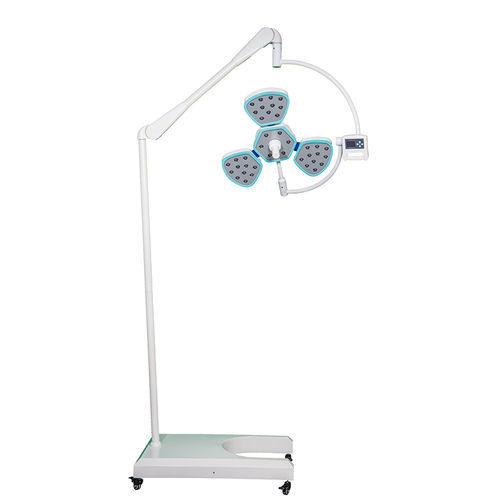

Mobile surgical light SX-II 3L

LEDfor operating rooms220V / 50Hz

Overview
The SX-II 3L is a mobile LED surgical light designed for operating rooms and examination rooms. It features a fully enclosed, streamlined 650 mm dome with a rippled high-definition panel made from shock- and heat-resistant PC material. The CAD/CAM-designed reflector system delivers deep, uniform illumination suitable for complex procedures.

Control and operation
Microcomputer digital control with eight-step dimming and 100 brightness adjustment steps. Main and auxiliary LEDs are easily replaceable; automatic failover from main to standby lamp within 0.2 seconds. Includes brightness memory, wide-voltage operation, strong anti-interference, soft-start function and a service life up to 3000 hours. Detachable disinfection handle is autoclavable up to ≤134℃. Six grouped joints provide smooth, stable positioning and a wide range of height and angle adjustments.

Technical parameters

• Illuminance: 35000–120000 lx
• Color temperature: 4300 K ± 500 K
• Spot diameter: 150–300 mm (adjustable)
• Irradiation depth: ≥1200 mm
• Brightness adjustment steps: 100
• Surgeon head temperature rise: ≤1℃
• Power supply: 220 V, 50 Hz
• Bulb power: 45 W
• Color Rendering Index (CRI): ≥97%

Configuration

• 1. 650 mm lamp dome — Qty: 1 — Unit: set
• 2. Disinfection handle — Qty: 2 — Unit: pcs
• 3. LED Osram bulb — Qty: 39 — Unit: pcs
• 4. Spring arm — Qty: 1 — Unit: set
• 5. Fixed base — Qty: 1 — Unit: set
• 6. Shield — Qty: 1 — Unit: set
• 7. Light tools — Qty: 1 — Unit: set
• 8. Operating manual / warranty card — Qty: 1 — Unit: set

Technical specifications

• Model: SX-II 3L
• Brand: Suxin
• Code: 9405429000
• Illuminance: 35000–120000 lx
• Color temperature: 4300 K ± 500 K
• Spot diameter: 150–300 mm (adjustable)
• Irradiation depth: ≥1200 mm
• Brightness adjustment steps: 100
• Surgeon head temperature rise: ≤1℃
• Power supply: 220 V, 50 Hz
• Bulb power: 45 W
• CRI: ≥97%
