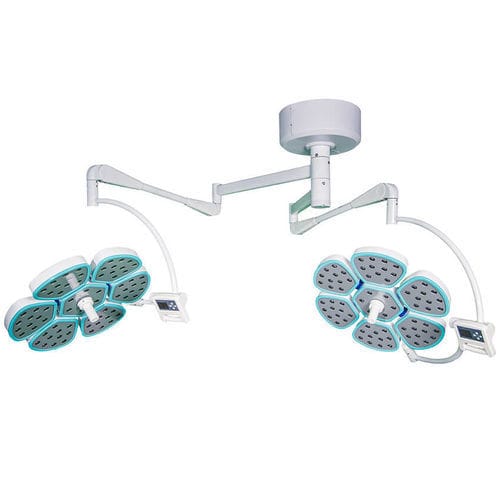

Ceiling-mounted surgical light SX-II 6/6

LEDfor operating rooms2-arm

Product description

• Ceiling-mounted, fully enclosed streamlined LED operating lamp designed for laminar flow purification and hygiene requirements in operating rooms.
• Professional six-joint suspension system provides stable, drift-free positioning; rotating arm offers 340° rotation for flexible placement.
• Cold LED light source with up to 80,000 h lifetime, minimizing maintenance and eliminating bulb replacement.
• No infrared or ultraviolet radiation; temperature rise at surgeon's head <1℃ to ensure cold-light operation.

Key features

• Adjustable color temperature 3700–5000K to improve diagnostic accuracy and reduce visual fatigue.
• High illuminance range 40,000–180,000 Lux with uniform, deep light column and shadowless illumination.
• Each LED fitted with refractive lens and optimized optical layout for advanced optical parameters and CRI ≥96.
• LED lamp holder concentrates beam into a soft, uniform column meeting surgical depth and brightness requirements.
• LCD button control for power, illumination and color temperature with digital memory for preset recall.

Technical parameters
Model: SX-II 6/6
Brand: Suxin
Code: 9405429000
Illuminance: 40,000–180,000 Lux
Color Temperature: 3,700–5,000 K (adjustable)
Spot Diameter: 150–300 mm
Color Rendering Index (CRI): ≥96
Depth of irradiation: ≥1200 mm
Brightness adjustment: Digital display 1%–100%
Power supply & voltage: ~220V/50Hz (110V optional)
Input power: 35 W
Temperature rise at surgeon's head: <1℃
LED average life: ≥80,000 h
Recommended installation height: 2.8–3.2 m

Configuration

• Lampholder — QTY: 2 sets
• Disinfection handle — QTY: 4 pcs
• Lamp beads — QTY: 144 pcs
• Balancer — QTY: 2 sets
• Rotating arm — QTY: 1 set (Double arms)
• Switch power supply assembly — QTY: 2 sets
• Fixed base — QTY: 1 set
• Shield — QTY: 1 set
• Light tools — QTY: 1 set
• Operating manual — QTY: 1 set
• Guarantee — QTY: 1 set

Specifications

• Model: SX-II 6/6
• Brand: Suxin
• Code: 9405429000
• Illuminance: 40,000–180,000 Lux
• Color Temperature: 3,700–5,000 K (adjustable)
• Spot Diameter: 150–300 mm
• CRI: ≥96
• Depth of irradiation: ≥1200 mm
• Brightness adjustment: 1%–100% (digital)
• Input power: 35 W
• LED average life: ≥80,000 h
