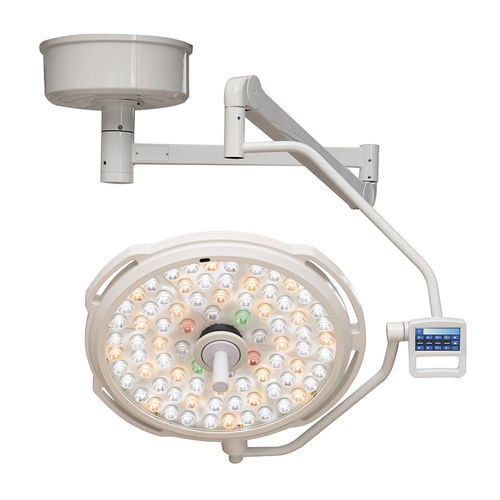

Ceiling-mounted surgical light SX-700
LEDfor operating rooms220V / 50Hz

Ceiling-mounted surgical light - SX-700 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz
Ceiling-mounted surgical light - SX-700 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz
Ceiling-mounted surgical light - SX-700 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz - image - 2
Ceiling-mounted surgical light - SX-700 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz - image - 3
Ceiling-mounted surgical light - SX-700 - Jiangsu Suxin Medical Equipment - LED / for operating rooms / 220V / 50Hz - image - 4
Add to favorites
Compare this product
Go to the Jiangsu Suxin Medical Equipment website for more information

Characteristics

Configuration
ceiling-mounted
Light source
LED
Applications
for operating rooms
Power source
110V / 60Hz, 220V / 50Hz
Color rendering index
96
Options
with control panel, with axial motion
Power

35 W

Intensity at 1 m

Max.: 180,000 lx

Min.: 40,000 lx

Color temperature

Max.: 5,500 K

Min.: 3,700 K

Description

Product overview
  • Ceiling-mounted LED surgical light designed for laminar-flow operating rooms with a fully enclosed, streamlined housing to support aseptic conditions.
  • Stable, natural positioning with no drift; 360° rotating arm for flexible intraoperative positioning.
  • Cold LED light source (German technology) with no infrared or ultraviolet radiation; minimizes temperature rise at surgeon’s head & supports long procedures.
  • Long LED lifetime (≥50,000 h) and digital brightness control; color temperature adjustable 3700–5500 K to improve tissue contrast and reduce visual fatigue.


Technical parameters
  • Model: SX-700 / LED 700
  • Brand: Suxin Medical
  • Commercial name: 700mm Ceiling Mounted 1 Arm Led Operating Light Shadowless Operating Lamp With Touchable Panel
  • HS Code: 9405429000
  • Lamp diameter: 700 mm
  • LED beads: 80 pcs
  • Illuminance (Lux): 40,000–180,000
  • Color temperature (K): 3700–5500 (adjustable)
  • Color Rendering Index (CRI): ≥96
  • Spot diameter: 150–300 mm
  • Depth of irradiation: ≥1200 mm
  • Brightness adjustment (digital display): 1%–10%
  • Input power: 35 W
  • Power supply: ~220 V/50 Hz (110 V optional)
  • Temperature rise at surgeon's head: <1 °C
  • LED lifetime: ≥50,000 h
  • Recommended installation height: 2.8–3.2 m


Configuration
  • 1. Lampholder — 2 sets
  • 2. Disinfection handle — 2 pcs
  • 3. Lamp beads — 80 pcs
  • 4. Balancer — 1 set
  • 5. Rotating arm — 1 set
  • 6. Switch power supply assembly — 2 sets
  • 7. Fixed base — 1 set
  • 8. Shield — 1 set
  • 9. Light tools — 1 set
  • 10. Operating manual — 1 set


Applications
  • Intended for general and specialist operating rooms, outpatient surgery centers and clinical procedure rooms requiring shadow-free, adjustable LED illumination.
  • Suitable for procedures where precise color rendering and thermal safety are required.
