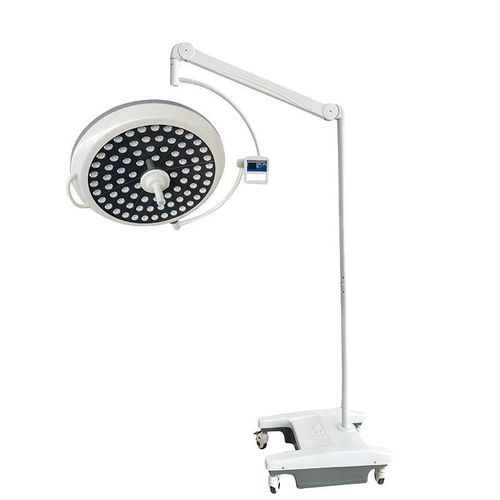

Mobile surgical light SX-II 700L

LEDveterinarydental

Product Brief
Mobile LED operating lamp designed to provide adjustable, shadow-minimizing illumination with high color fidelity for surgical and procedural use. Suitable for general surgery, orthopedics, gynecology and emergency procedures where precise, cool lighting is required.

Model & Brand

• Model: SX-II 700L
• Brand: Suxin Medical

Product Description

• Central luminance: 40000–180000
• Color temperature: 3700K±500K
• Spot diameter: 150–300 mm (adjustable)
• Illumination depth: ≥1200 mm
• Intensity control range: 1–100
• Temperature rise at surgical site: ≤1℃
• Temperature rise of working area: ≤2℃
• Power voltage: 220V ±22V, 50Hz ±1Hz
• Input power: 400 VA
• Single LED power: 1W/3V
• Color Rendering Index (CRI): ≥97%
• LED life expectancy: ≥80,000 hours
• Lamp head diameter: 700 mm
• Number of LEDs: 80

Characteristics / Spécifications techniques

• Central luminance: 40000–180000
• Color temperature: 3700K±500K
• Spot diameter (adjustable): 150–300 mm
• Illumination depth: ≥1200 mm
• Intensity control: 1–100 (stepless)
• Temperature rise at surgical site: ≤1℃
• Temperature rise of working area: ≤2℃
• Power supply: 220V ±22V, 50Hz ±1Hz
• Input power: 400 VA
• LED rating: 1W / 3V per LED
• CRI: ≥97%
• LED lifespan: ≥80,000 h
• Lamp head diameter: 700 mm
• Number of LEDs: 80
• Model: SX-II 700L
• Brand: Suxin Medical
