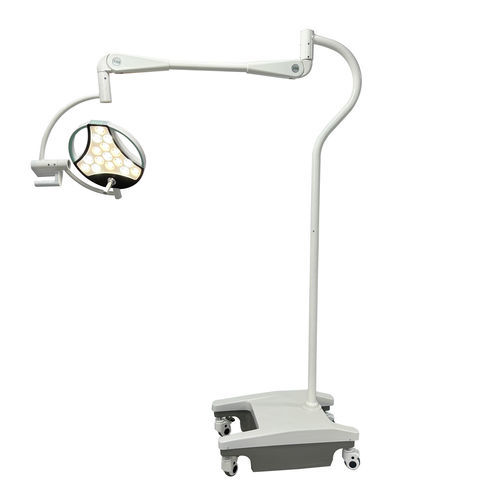

Minor precision surgery examination lamp SX-3L

LEDfloor-standingmobile

Product Overview
This device adopts fully enclosed structure and streamlined design. The high-definition rippled panel is made of shock-resistant and heat-resistant PC material. The reflector system designed in CAD/CAM provides an irradiation depth up to 1000mm. Using color temperature compensation technology, color rendition is improved, making it suitable for complex surgeries (e.g. encephalon and thorax surgery). The well-proportioned illumination effectively eliminates shadows in various circumstances, making it an ideal lighting facility for surgical operations.

Unique features
1. Micro-computer digital control circuit with eight-step dimming.
2. Major and auxiliary bulbs are easily replaceable; when the main bulb malfunctions the standby bulb activates automatically within 0.2 seconds.
3. Brightness memory, wide voltage working range, strong anti-interference ability and soft starter features.
4. Service life up to 3000 hours for bulbs; detachable disinfection handle can be sterilized at high level (≤134℃) to ensure reliable operation.
5. Smooth movement and stable positioning via six-group joints; universal design satisfies various required heights and angles during operations.

Technical parameter
Illuminance: 35000-100000
Color Temperature (K): 4300K±500K
Spot Diameter (MM): 100-160mm adjustable
The depth of the irradiation (MM): ≥1000mm
Brightness adjustment: Eight
Temperature at surgeon's head: ≤1℃
Power supply and voltage: 220V 50Hz
Bulb power: 150/150
Color Rendering Index (CRI): ≥97%
Rated power of bulb (mw/m2lux): 3.7

Configuration
No | Item Name | QTY | Unit
1 | 300 lampholder | 1 | set
2 | Disinfection handle | 1 | pc
3 | LED Osram bulb | 16 | pcs
4 | Spring Arm | 1 | set
5 | Fixed base | 1 | set
6 | Shield | 1 | set
7 | Light tools | 1 | set
8 | Operating manual/warranty card | 1 | set

Caractéristiques / spécifications techniques

• Model: SX-3L
• Brand: Suxin
• Fully enclosed structure with streamlined design
• Rippled PC high-definition panel: shock-resistant and heat-resistant
• CAD/CAM-designed reflector system for deep, shadow-free illumination
• Color temperature compensation technology for improved color rendition
• Micro-computer digital control with eight-step dimming and brightness memory
• Automatic standby bulb activation within 0.2 seconds in case of main bulb failure
• Detachable disinfection handle sterilizable up to 134℃
• Six-group joint movement for smooth, stable positioning
• Power: 220V 50Hz; Bulb power: 150/150; Rated bulb power metric: 3.7
• CRI ≥97%
• Irradiation depth ≥1000mm
